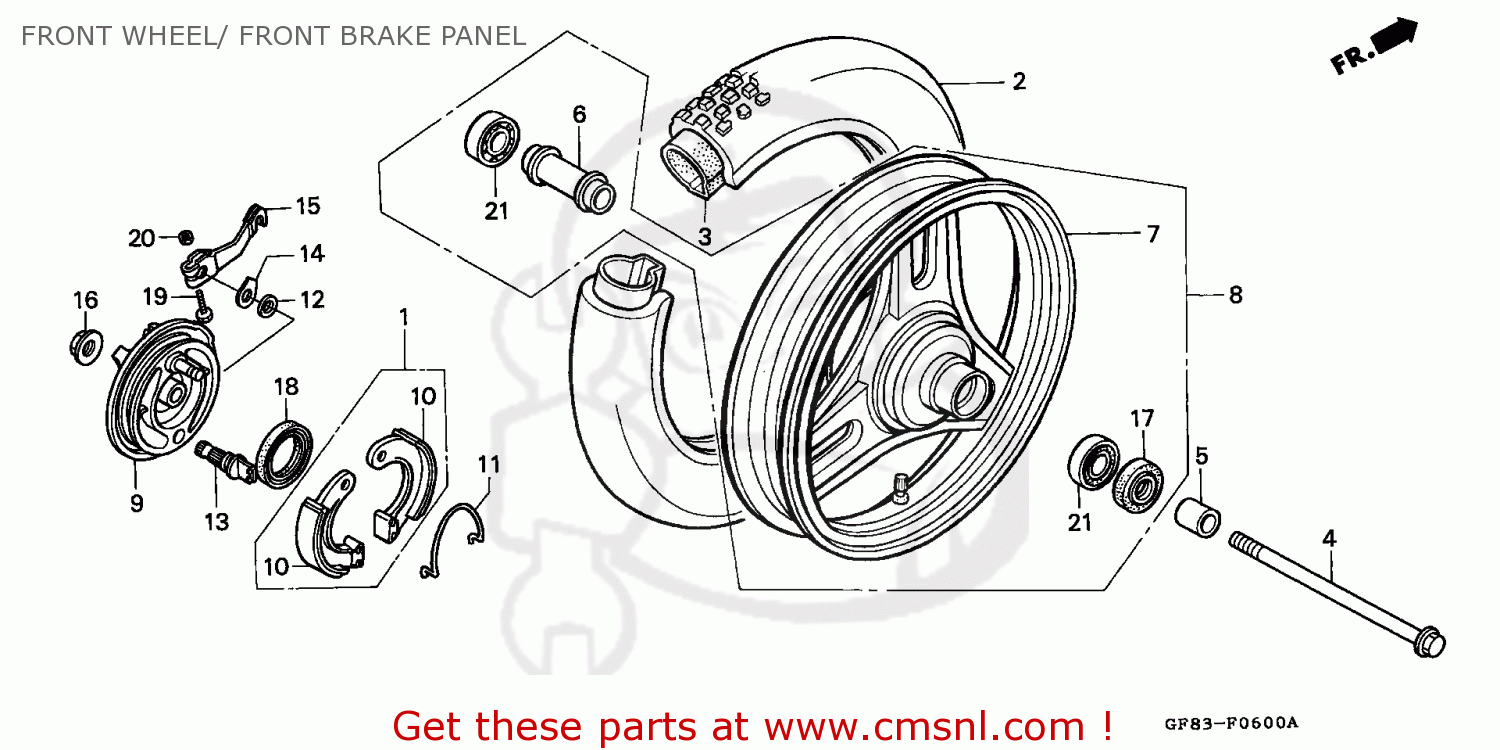

FRONT WHEEL/ FRONT BRAKE PANEL

ref

part #

description

quantity

2

42711GF8003
ref: 2

TIRE

€ 94.00

3

42712187003
ref: 3

TUBE,TIRE

€ 28.50

4

44301GC1000
ref: 4

AXLE,FR.WHEEL

€ 8.00

5

44311GA6000
ref: 5

COLLAR,WHEEL SIDE

€ 4.50

6

44620187000
ref: 6

COLLAR,DISTANCE

€ 7.00

8

44650GF8305ZA
ref: 8

WHEEL SE*YR112MU*

€ 105.00

9

45100GF8000ZA
ref: 9

PNL,BRK*YR-112M-U

€ 56.00

10

45120147672
ref: 10

SHOE COMP.,BRAKE (MCA)

€ 20.50

11

45133044000
ref: 11

SPRING,BRAKE SHOE

€ 5.50

12

45134165890
ref: 12

SEAL,BRAKE CAM

€ 2.00

13

45141GA6010
ref: 13
AE011030087

CAM,FRONT BRAKE

€ 8.50

13

43141GM0010
ref: 13
AE011030088

CAM,RR BRK

€ 7.50

14

45145GF8000
ref: 14

INDICATOR,BRK

€ 2.00

15

45410GF8000
ref: 15

ARM,FRONT BRAKE

€ 10.00

16

90304GA6003
ref: 16

NUT,AXLE

€ 4.00

17

90754147003
ref: 17

OIL SEAL,19X30.5

€ 6.50

18

91252147003
ref: 18

OIL SEAL,34X47X5

€ 4.50

19

92000050220A
ref: 19

BOLT,HEX

€ 1.50

20

94001050000S
ref: 20

NUT,HEX.,5MM

€ 1.00

21

961406200010
ref: 21

B/BRG RAD N/COM

€ 11.50

all assemblies
