OIL PUMP - WATER PUMP - NS400R 1985 (F) GERMANY

ref

part #

description

quantity

1

15100KM9003
ref: 1

OIL PUMP ASSY.

€ 212.00

2

15110KM9000
ref: 2

CABLE,OIL PUMP

€ 22.00

3

15121KM4000
ref: 3

INSULATOR OIL PUM

€ 8.00

4

15210KM4000
ref: 4

SHAFT COMP,IDLE.

€ 83.00

5

15215KM4000
ref: 5

SHAFT,OIL PUMP

€ 18.00

6

15311KM4000
ref: 6

BASE,OIL PUMP

€ 66.50

7

15312KG4000
ref: 7

GSK OIL PUMP BASE

€ 2.50

8

15351KM9000
ref: 8

PROTECTOR,OIL PUM

€ 22.00

9

15520KM9000
ref: 9

PIPE COMP,OIL PAS

€ 49.00

10

15532KM9000
ref: 10

TUBE,OIL MAIN

€ 17.50

11

15533KM4000
ref: 11

SPRING B,OIL TUBE

€ 7.00

12

19200KM4010
ref: 12

PUMP ASSY,WATER

€ 178.50

13

19221KM4000
ref: 13

COVER,WATER PUMP

€ 0.00

14

19226KM4000
ref: 14

GASKET,W-PUMP COV

€ 3.50

15

19511KM9000
ref: 15

HOSE A,WATER

€ 6.00

16

19517MB6000
ref: 16

CLAMP WATER HOSE

€ 7.50

17

19518KM9000
ref: 17

HOSE E,WATER

€ 14.00

18

19521KM4000
ref: 18

WIRE,GUARD

€ 12.50

19

90443844000
ref: 19

WASHER,THURUST

€ 2.00

20

90452437000
ref: 20

WASHER,THR.16.5MM

€ 2.50

21

90453147000
ref: 21

WASHER,12MM

€ 1.00

22

90501MB0000
ref: 22

DOWEL PIN 8X14

€ 2.00

23

91202300005
ref: 23

OIL SEAL,8X18X5

€ 4.50

24

91301KG4003
ref: 24

O-RING,37.4X2.4

€ 4.00

25

9451012000
ref: 25

CIRCLIP,EX,12

€ 1.00

26

950013005540
ref: 26

TUBE,FUEL,3X55

€ 2.00

27

9500202650
ref: 27

CLIP,B65,TUBE

€ 1.00

28

950024085008
ref: 28

CLAMP D 8.5 TUBE

€ 1.50

29

950024105004
ref: 29

CLAMP D 10.5 TUBE

€ 1.50

30

959000601808
ref: 30

BOLT,FLG 6X18

€ 1.50

31

959000602008
ref: 31

BOLT FLG 6X20

€ 1.00

32

959000603508
ref: 32

BOLT.FLG 6X35

€ 1.00

33

960000602500
ref: 33

BOLT,FLANGE,6X25

€ 1.50

34

960000603200
ref: 34

BOLT,FLANGE,6X32

€ 2.00

35

960000605000
ref: 35

BOLT,FLANGE,6X50

€ 2.00

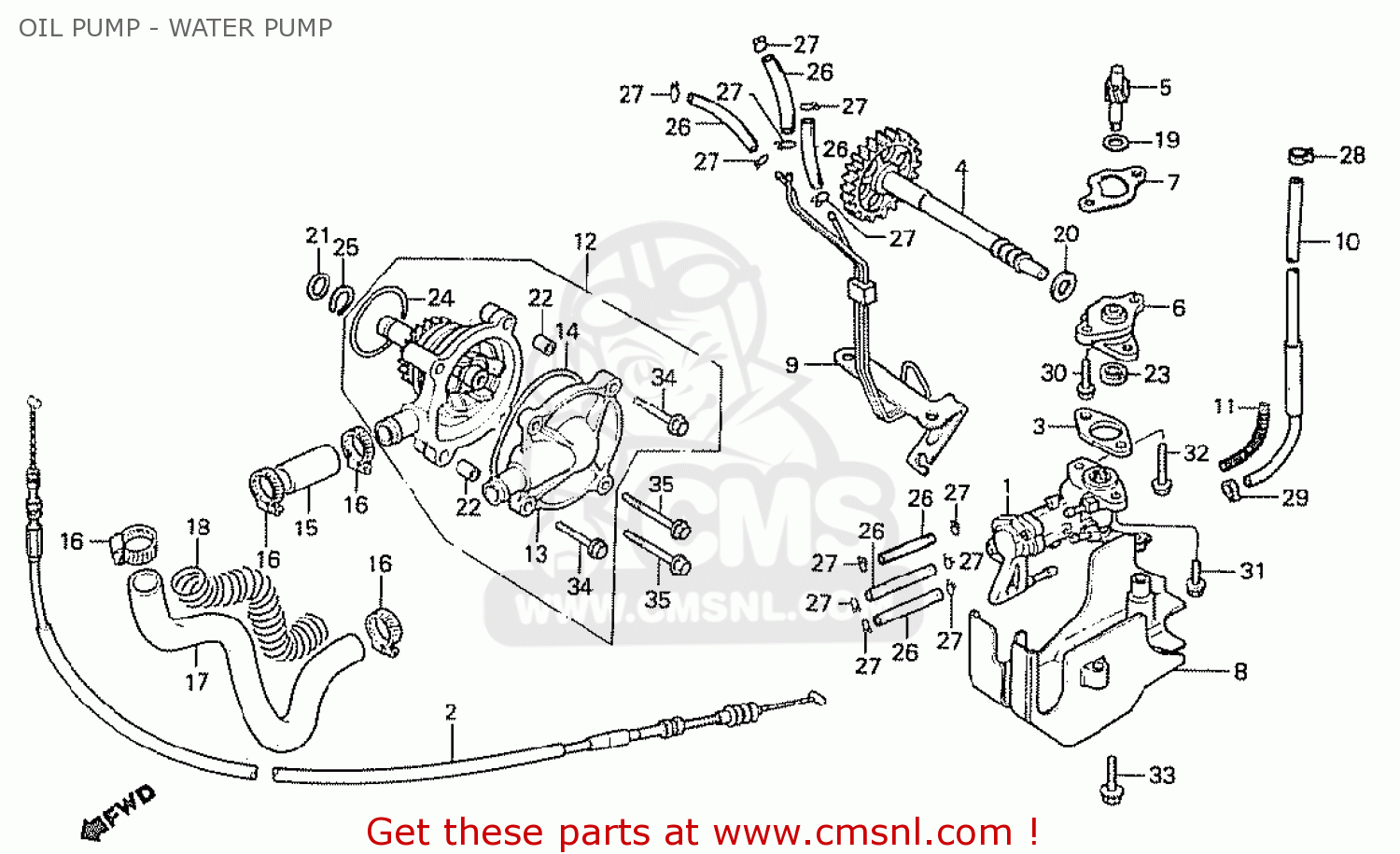

OIL PUMP - WATER PUMP

all assemblies
