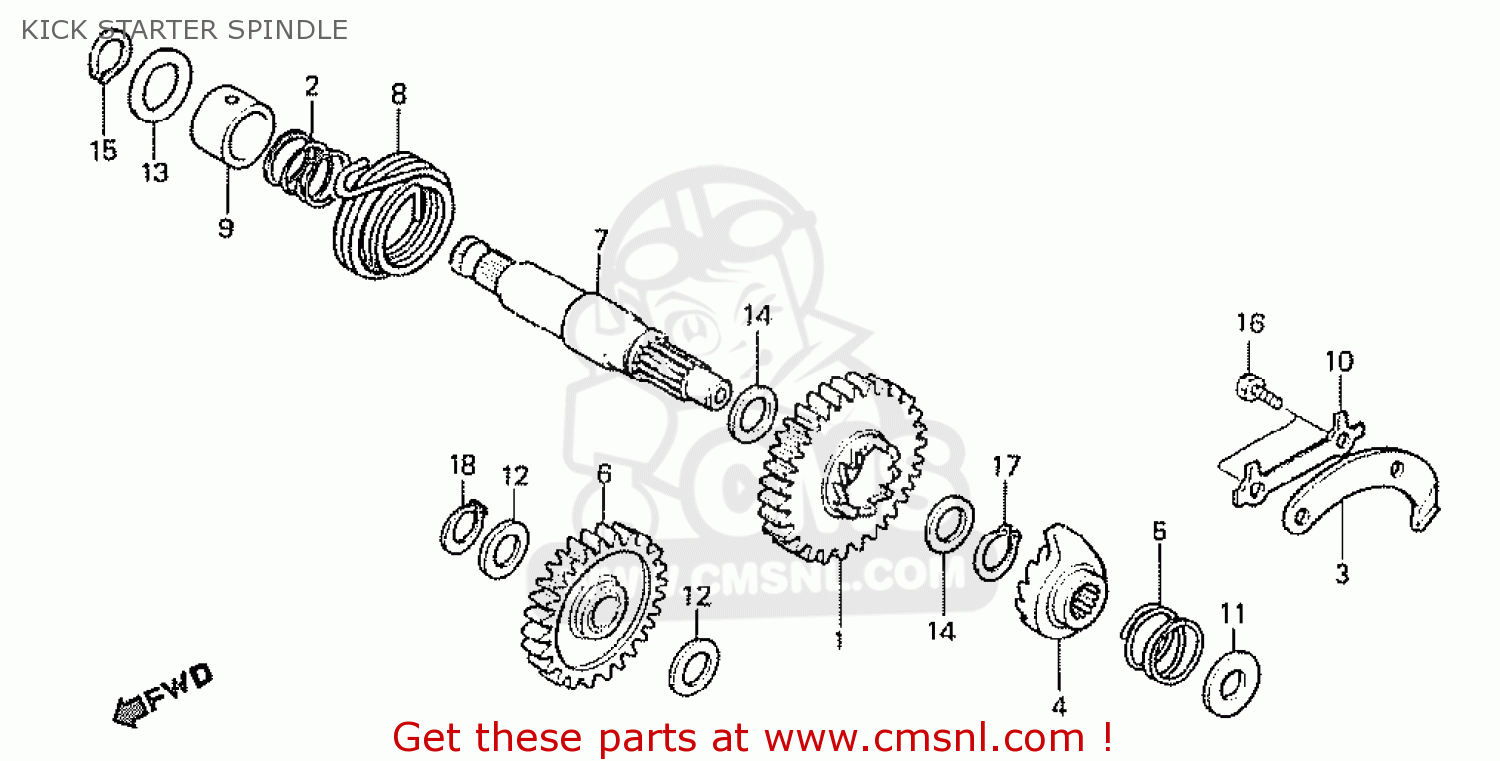

KICK STARTER SPINDLE

ref

part #

description

quantity

1

28210KG4000
ref: 1

PINON KICK STARTE

€ 83.50

2

28213KG4000
ref: 2

SPG,START.GEAR

€ 3.50

3

28215KG4000
ref: 3

PLATE,KICK STOPPE

€ 5.50

4

28221KG4000
ref: 4

RATCHET K/STARTER

€ 40.00

5

28223KA4000
ref: 5

SPRING,KICK START

€ 3.50

6

28230KM4000
ref: 6

GEAR,STARTER IDLE

€ 44.50

7

28251KM9000
ref: 7

SPINDLE,KICK STAR

€ 76.50

8

28261KG4000
ref: 8

SPG,KICK RETURN

€ 9.00

9

28262KG4000
ref: 9

COLLAR,KICK SPG

€ 3.50

10

90453KA4700
ref: 10

WASHER,LOCK,6MM

€ 1.00

11

90454200000
ref: 11

WASHER, THRUST

€ 2.50

12

90454428000
ref: 12

WASH THRUST 20MM

€ 3.50

13

90554700000
ref: 13

WASHER,THRUST

€ 1.50

14

90554728940
ref: 14

WASH,THRUST,20MM

€ 11.00

15

90601459000
ref: 15

CIR CLIP 20MM

€ 2.50

16

92000060140H
ref: 16

BOLT,HEX.,6X14

€ 1.00

17

9451014000
ref: 17

CIRCLIP,EX,14

€ 1.00

18

9451020000
ref: 18

CIR CLIP,EX.20

€ 1.00

all assemblies
