HANDLE PIPE - TOP BRIDGE
NS400R 1985 (F) GERMANY

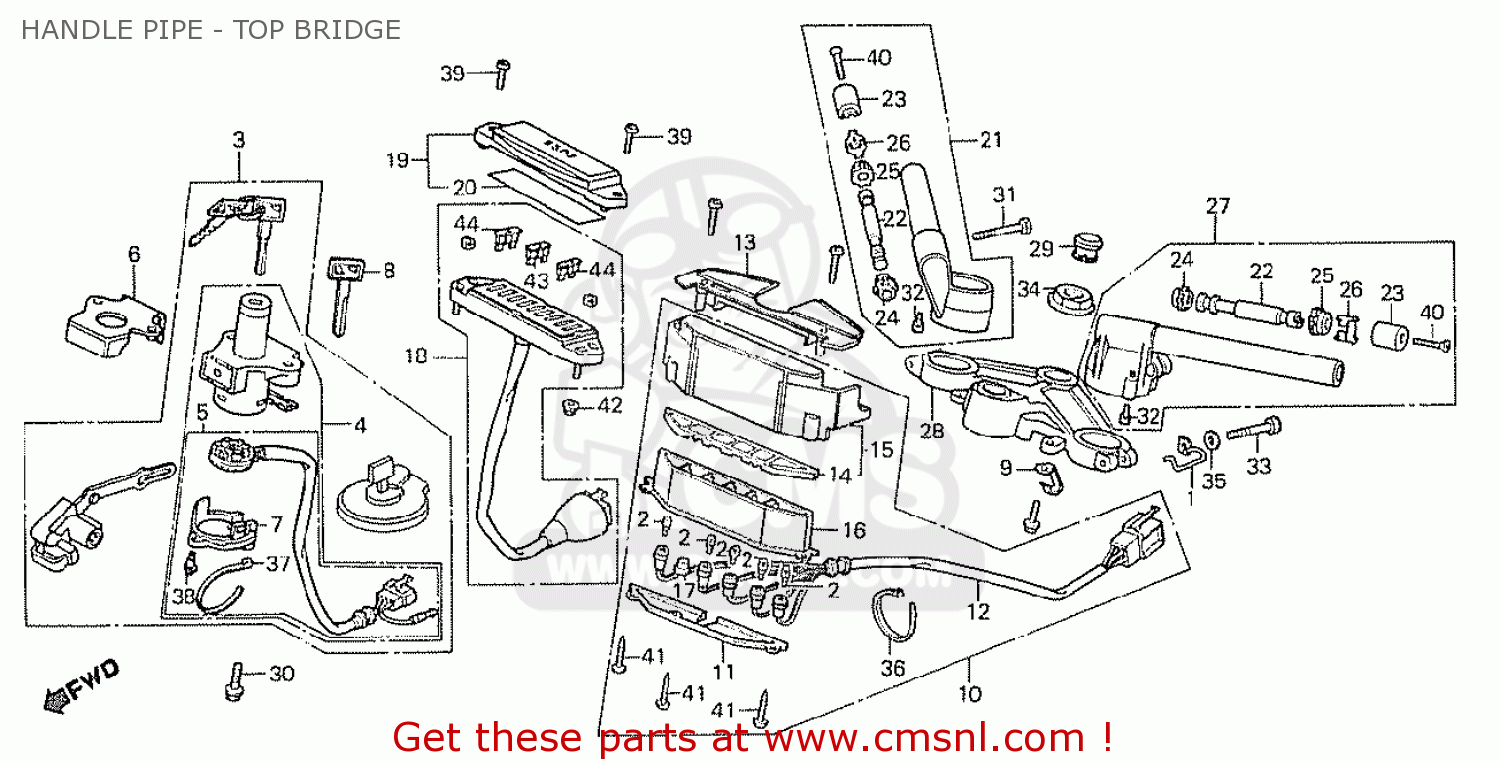

Handle pipe - top bridge diagram NS400R 1985 (F) GERMANY
HANDLE PIPE - TOP BRIDGE NS400R 1985 (F) GERMANY
×
prices are in EUR
ref
part #
description
quantity
1
17908MB2010
ref: 1
GUIDE,CABLE
€ 7.00
2
34908MB0003
ref: 2
BULB,WEDGE BASE
€ 3.50
3
35010KM9610
ref: 3
KEY SET
€ 211.00
4
35100KM9611
ref: 4
SWITCH ASSY.,COMB
€ 155.50
5
35101KM9007
ref: 5
BASE COMP.,CONTAC
€ 55.00
6
35106MB2610
ref: 6
COVER,COMB,SW.
€ 10.50
8
35121MA6811
ref: 8
KEY,BLANK (NO.1)
€ 12.50
8
35122MA6811
ref: 8
KEY,BLANK (NO.2)
€ 12.50
9
35210KM9000
ref: 9
CLAMP SW.CORD
€ 2.50
10
37300KM9611
ref: 10
PILOT BOX ASSY
€ 215.00
11
37305KM4008
ref: 11
BACK COVER PILOT
€ 3.00
12
37310KM9641
ref: 12
SOCKET COMP.
€ 38.50
13
37330KM9000
ref: 13
COVER,P.BOX
€ 18.50
14
37340KM9611
ref: 14
LENS COMP.,
€ 19.50
15
37350KM9611
ref: 15
PILOT BOX COMP.,
€ 46.00
16
37360KM9008
ref: 16
CASE INNER
€ 15.50
17
37361KM9008
ref: 17
CAP
€ 0.00
18
38200KM9005
ref: 18
FUSE PLATE ASSY
€ 37.00
19
38210KM9005
ref: 19
COVER FUSE PLATE
€ 9.50
20
38215KM9005
ref: 20
LABEL, FUSE (B)
€ 0.00
21
53100KM9000
ref: 21
PIPE,R STRG.HNDL
€ 212.00
22
53104MJ0000
ref: 22
WEIGHT B,HNDL
€ 28.50
23
53105KM9000
ref: 23
WEIGHT A,STRG.HND
€ 16.50
24
53106MJ0000
ref: 24
RUB,HANDLE WT.A
€ 4.50
25
53107KM9000
ref: 25
RUBBER,HANDLE WEI
€ 3.50
26
53108MJ0000
ref: 26
SNAPRING,HNDL.WT.
€ 6.50
27
53150KM9000
ref: 27
PIPE,L STRG.HNDL
€ 212.00
28
53230KM9000
ref: 28
BRIDGE,FORK TOP
€ 215.50
29
53232MJ4670
ref: 29
CAP,STEEPING NUT
€ 11.50
30
90105KE1721
ref: 30
BOLT,COMB SW.SET
€ 3.50
31
90106KM9000
ref: 31
BOLT,FLANGE,8X35
€ 4.50
32
90111MJ6700
ref: 32
BOLT,SOCKET,8X10
€ 2.50
33
90151MB2000
ref: 33
BOLT,SOCKET,7X46
€ 5.50
34
90304MJ4670
ref: 34
NUT,FLANGE.,STEER
€ 8.00
35
90511MB2000
ref: 35
WASHER,PLAIN.7MM
€ 1.50
36
91058KM4008
ref: 36
BAND, SELF LOCK
€ 2.50
37
91058MG9681
ref: 37
BAND,SELF LOCK
€ 4.00
38
91059MG9681
ref: 38
SCREW,TAPPING,3X1
€ 2.00
39
93500050160G
ref: 39
SCREW,PAN,5X16
€ 1.00
40
93600060450B
ref: 40
SCREW,FLAT,6X45
€ 1.50
41
9390332480
ref: 41
SCW,TAPPING,3X16
€ 0.50
42
9405005000
ref: 42
NUT,FLANGE,5MM
€ 1.00
43
9820031000
ref: 43
BLADE FUSE 10A
€ 1.00
44
9820031500
ref: 44
BLADE FUSE 15A
€ 1.00
