HANDLE LEVER - SWITCH - CABLE - NS400R 1985 (F) GERMANY

ref

part #

description

quantity

1

17910KM9000
ref: 1

CABLE(COMP)A,THRO

€ 22.00

2

17920KM9000
ref: 2

CABLE(COMP)B,THRO

€ 20.00

3

17950KM9000
ref: 3

CABLE COMP.,CHOKE

€ 54.50

4

17957KM4000
ref: 4

O RING,1.6X4.8

€ 2.00

5

17962KE8701
ref: 5

LEVER,CHOKE

€ 18.00

6

22870KM9000
ref: 6

CABLE COMP,CLUTCH

€ 25.00

7

35150KM9003
ref: 7

SW ASSY.,LIGHT &

€ 85.00

8

35200KM9003
ref: 8

SW,ASSY,WINKER

€ 101.00

9

53141422000
ref: 9

PIPE,THROT.GRIP

€ 19.50

10

53165422000
ref: 10

GRIP,R.HANDLE

€ 15.50

11

53166422000
ref: 11

GRIP,L.HANDLE

€ 15.50

12

53172KM4000
ref: 12

BRKT.,HNDL.LEVER

€ 47.50

13

53174463770
ref: 13

PLUG,HNDL.LEVER

€ 2.00

14

53178KM9000
ref: 14

LEVER COMP.,L.HAN

€ 21.50

15

53180422020
ref: 15

COVER,HNDL.LEVER

€ 16.00

16

53192268000
ref: 16

BOLT

€ 7.50

17

90113438000
ref: 17

BOLT,LEVER PIVOT

€ 6.50

18

90321MA6750
ref: 18

NUT,FIXING

€ 11.50

19

938920502007
ref: 19

SCREW WASHER 5X20

€ 1.00

20

938920502807
ref: 20

SCREW-WASHER,5X28

€ 0.50

21

938920504507
ref: 21

SCREW-WASHER,5X45

€ 2.50

22

960000602507
ref: 22

BOLT,FLANGE,6X25

€ 1.50

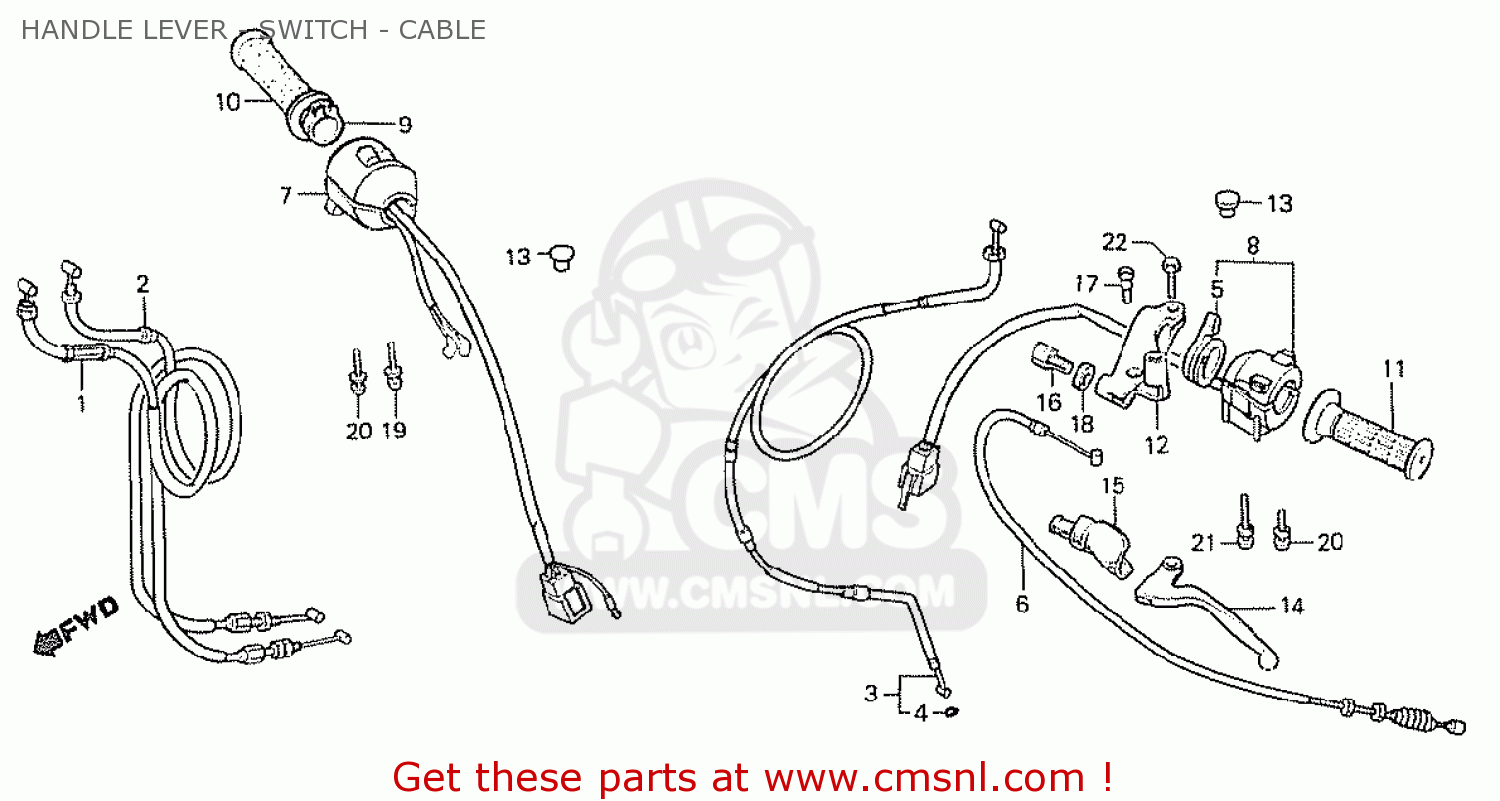

HANDLE LEVER - SWITCH - CABLE

all assemblies
