CYLINDER - CYLINDER HEAD )FRONT)
NS400R 1985 (F) GERMANY

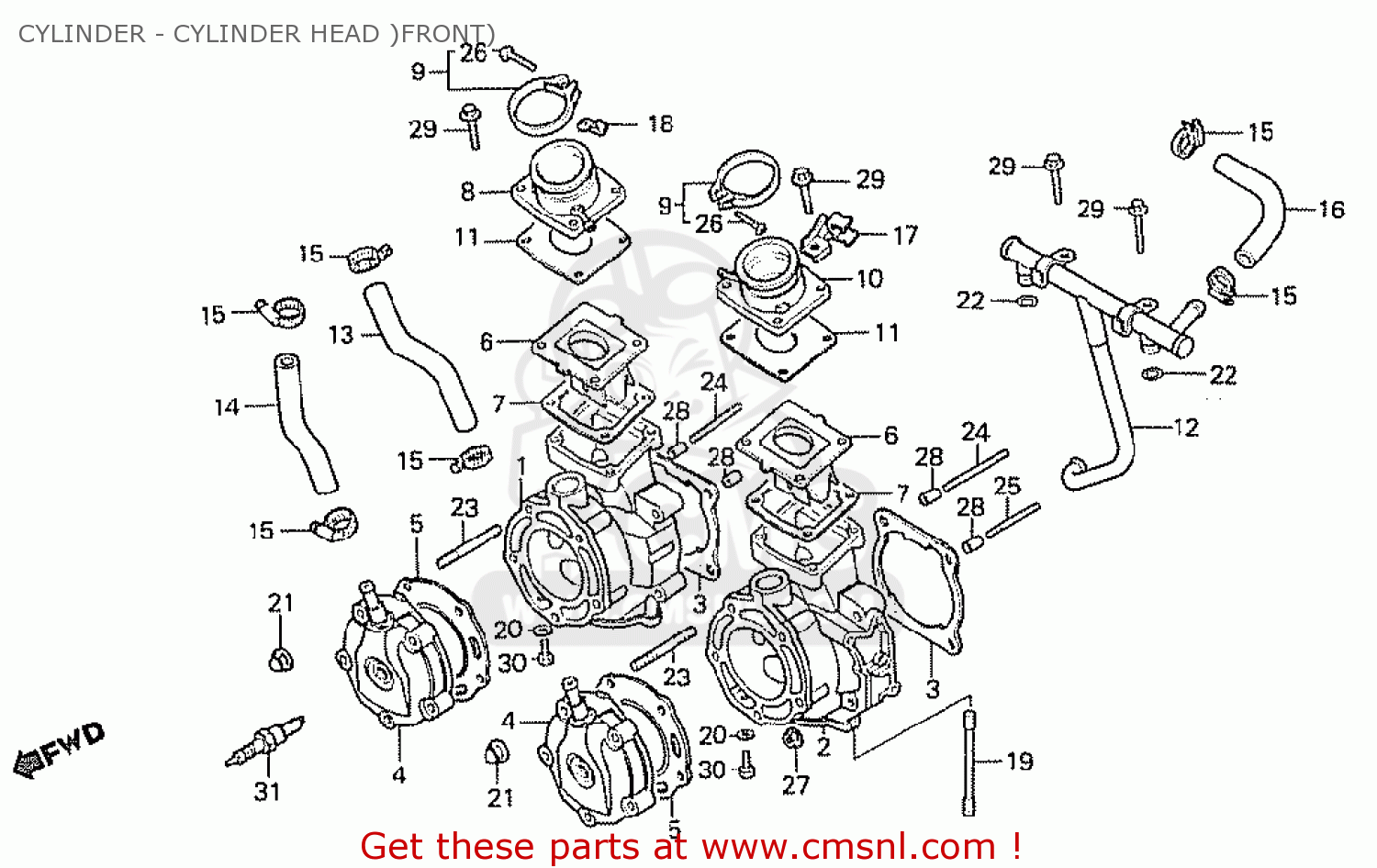

Cylinder - cylinder head )front) diagram NS400R 1985 (F) GERMANY
CYLINDER - CYLINDER HEAD )FRONT) NS400R 1985 (F) GERMANY
×
prices are in EUR
ref
part #
description
quantity
1
12101KM9760
ref: 1
CYLINDER A FR RH
€ 788.50
1
12102KM9760
ref: 1
CYLINDER B FR.RH.
€ 872.50
1
12103KM9760
ref: 1
CYLINDER C FR.RH.
€ 872.50
2
12121KM9760
ref: 2
CYLINDER A,FR LH
€ 772.50
2
12122KM9760
ref: 2
CYLINDER B FR.LH.
€ 0.00
2
12123KM9760
ref: 2
CYLINDER C FR LH
€ 0.00
3
12192KM4000
ref: 3
GASKET,CYLINDER (MCA)
€ 6.50
4
12210KM9000
ref: 4
CYLINDER HEAD COM
€ 245.50
5
12251KM9760
ref: 5
GASKET,CYLN HEAD
€ 15.00
6
14100KM9000
ref: 6
VALVE COMP,REED
€ 161.00
7
14132KM9000
ref: 7
GASKET,REED VALVE (MCA)
€ 10.50
8
16210KM9000
ref: 8
INSULATOR COMP.A,
€ 40.00
9
16219MB0770
ref: 9
BAND,INSULATOR
€ 11.00
10
16220KM9000
ref: 10
CARB INSULATOR,B
€ 40.00
11
16231KM9000
ref: 11
GASKET,CARBURETOR
€ 13.00
12
19411KM9000
ref: 12
PIPE,DISTR
€ 62.00
13
19501KM9000
ref: 13
HOSE B,WATER
€ 8.50
14
19502KM9000
ref: 14
HOSE C,WATER
€ 8.50
15
19517MB6000
ref: 15
CLAMP WATER HOSE
€ 7.00
16
19521KM9000
ref: 16
HOSE G,WATER
€ 7.00
17
30504KM9000
ref: 17
STAY,IGNITT.COIL
€ 4.00
18
32906KM4000
ref: 18
CLIP,HIGH TENSON
€ 2.50
19
90004KM4000
ref: 19
BOLT STUD 8X70
€ 3.50
20
90441028010
ref: 20
WASHER, SEALING
€ 2.00
21
90443107000
ref: 21
NUT,HEX.CAP
€ 3.50
22
91302028000
ref: 22
O-RING,15X2.5
€ 3.00
23
92900080350E
ref: 23
BOLT,STUD,8X35
€ 3.00
24
92900080403E
ref: 24
BOLT STUD 2 8X40
€ 2.00
25
92900080553E
ref: 25
BOLT,STUD 2.8X55
€ 3.00
26
93500050280G
ref: 26
SCREW,CROSS 5X28
€ 1.00
27
9405008000
ref: 27
9405008000
28
9430110160
ref: 28
9430110160
29
959000602207
ref: 29
BOLT FLANGE 6X22
€ 1.50
30
960000601007
ref: 30
BOLT,FLANGE 6X10
€ 1.00
31
9807958846
ref: 31
PLUG,SPARK
€ 7.50
31
9807958857
ref: 31
PLUG,SPARK (W24ES
€ 7.50
31
9807959847
ref: 31
PLUG,SPARK(B9ESR)
€ 7.50
31
9807959857
ref: 31
PLUG,SPARK (W27ES
€ 7.50
31
9807960646
ref: 31
PLUG,SPARK (BR10E
€ 16.00
31
9807960657
ref: 31
PLUG,SPARK (W31ES
€ 24.00
