COWL
NS400R 1985 (F) GERMANY

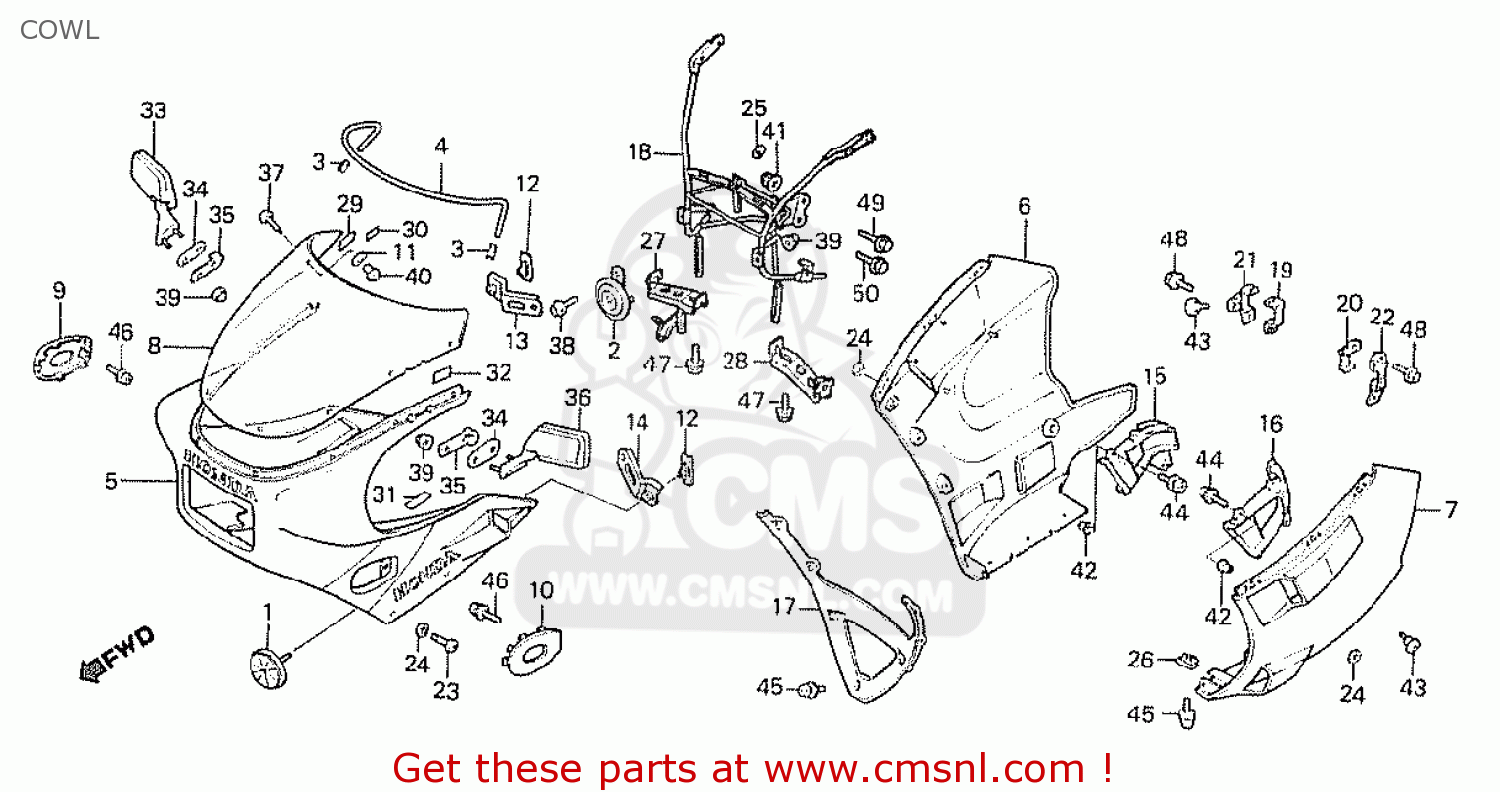

Cowl diagram NS400R 1985 (F) GERMANY
COWL NS400R 1985 (F) GERMANY
×
prices are in EUR
ref
part #
description
quantity
2
38110MF9600
ref: 2
HORN COMP,(HIGE)
€ 81.50
3
64102MA3720
ref: 3
CLIP,SCREEN MOUL.
€ 3.00
4
64105KM9640
ref: 4
MOULDING,WIND SCR
€ 8.50
5
642A1KM9710
ref: 5
COWL SET,FR.UPPER
€ 1,140.00
5
642B1KM9710
ref: 5
COWL SET,FR.UPPER
€ 1,140.00
6
642A5KM9305
ref: 6
COWL SET,R.LOWER
€ 580.50
6
642A5KM9640
ref: 6
COWL SET,R.LOWER
€ 580.50
7
642A6KM9305
ref: 7
COWL SET,L.LOWER
€ 580.50
7
642A6KM9640
ref: 7
COWL SET,L.LOWER
€ 580.50
8
64200KM9610
ref: 8
SCREEN,WIND
€ 323.50
8
64200KM9640
ref: 8
SCREEN,WIND
€ 323.50
9
64211KM9640ZA
ref: 9
COVER,R F*NH-138*
€ 11.50
10
64212KM9640ZA
ref: 10
COVER,L F*NH-138*
€ 11.50
11
64212MB6000
ref: 11
RUBBER,A.,WIND SC
€ 2.50
15
64255KM9000
ref: 15
DUCT R,LOWER COWL
€ 20.00
16
64265KM9000
ref: 16
DUCT L,LOWER COWL
€ 20.00
17
64270KM4000ZA
ref: 17
STIFFNER*NH-138*
€ 55.50
17
64270KM4000ZD
ref: 17
STIFFN*PB-127C-U*
€ 55.50
18
64501KM9640
ref: 18
STAY,FAIRING MAIN
€ 356.00
19
64503KM9710
ref: 19
BAND,R.LOWER COWL
€ 5.50
20
64504KM9710
ref: 20
BAND,L.LOWER COWL
€ 5.50
21
64505KM9710
ref: 21
STAY,R.LOWER COWL
€ 8.50
22
64506KM9710
ref: 22
STAY,L.LOWER COWL
€ 8.50
23
64507KE8700
ref: 23
STUD,6.5MM
€ 10.50
24
64509KE8700
ref: 24
RETAINER,6MM
€ 2.50
25
64513MA6720
ref: 25
PLUG,FAIRING
€ 3.50
26
64527KE8700
ref: 26
NUT,CLIP,4MM
€ 3.00
27
64530KM9000
ref: 27
STAY.R FAIRING SU
€ 27.50
28
64540KM9000
ref: 28
STAY,L FAIRING SU
€ 18.50
29
87508415670
ref: 29
MARK,RADIATOR CAU
€ 10.00
30
87512KM9640
ref: 30
MARK,ACCESS.LOAD
€ 5.50
31
87515KM9610
ref: 31
LABEL,FAIRING MAR
€ 3.50
32
87522MA3700
ref: 32
LABEL,WIND CAUTIO
€ 6.00
33
88110KM9621ZA
ref: 33
MIRROR,R.B*R-134*
€ 60.50
33
88110KM9621ZB
ref: 33
MIRROR R BA*NH-1*
€ 60.50
34
88111KM9620
ref: 34
RUBBER,MIRROR MOU
€ 4.00
35
88112KM4000
ref: 35
RUB,BACK MIRROR
€ 3.50
36
88120KM9621ZA
ref: 36
MIRROR,L.B*R-134*
€ 60.50
36
88120KM9621ZB
ref: 36
MIRROR L BA*NH-1*
€ 71.00
37
90111MB6000
ref: 37
SCREW,SCREEN SET.
€ 2.50
38
90116965000
ref: 38
BOLT,FLANGE,8X10
€ 4.00
39
90201428900
ref: 39
NUT,CAP,6MM
€ 2.50
40
90202MB6000
ref: 40
NUT,SCREEN SET
€ 4.00
41
90202329000
ref: 41
NUT,FLANGE,10MM
€ 4.00
42
90315MJ1000
ref: 42
NUT,INSERT M4X0.7
€ 2.50
43
90381KM9000
ref: 43
SCREW,SPECIAL,6X1
€ 3.00
44
938910401007
ref: 44
SCREW WASH 4X10
€ 1.00
45
938910401207
ref: 45
SCREW-WASH,4X12
€ 1.00
46
938910501007
ref: 46
SCREW-WASH,5X10
€ 1.00
47
963000601400
ref: 47
BOLT.FLANGE 6X14
€ 1.50
48
963000602000
ref: 48
BOLT.FLANGE 6X20
€ 1.00
49
964001003500
ref: 49
BOLT,FLANGE,10X35
€ 1.50
50
964001004007
ref: 50
BOLT,FLANGE,DR.10
€ 3.00
