CLUTCH

NS400R 1985 (F) GERMANY

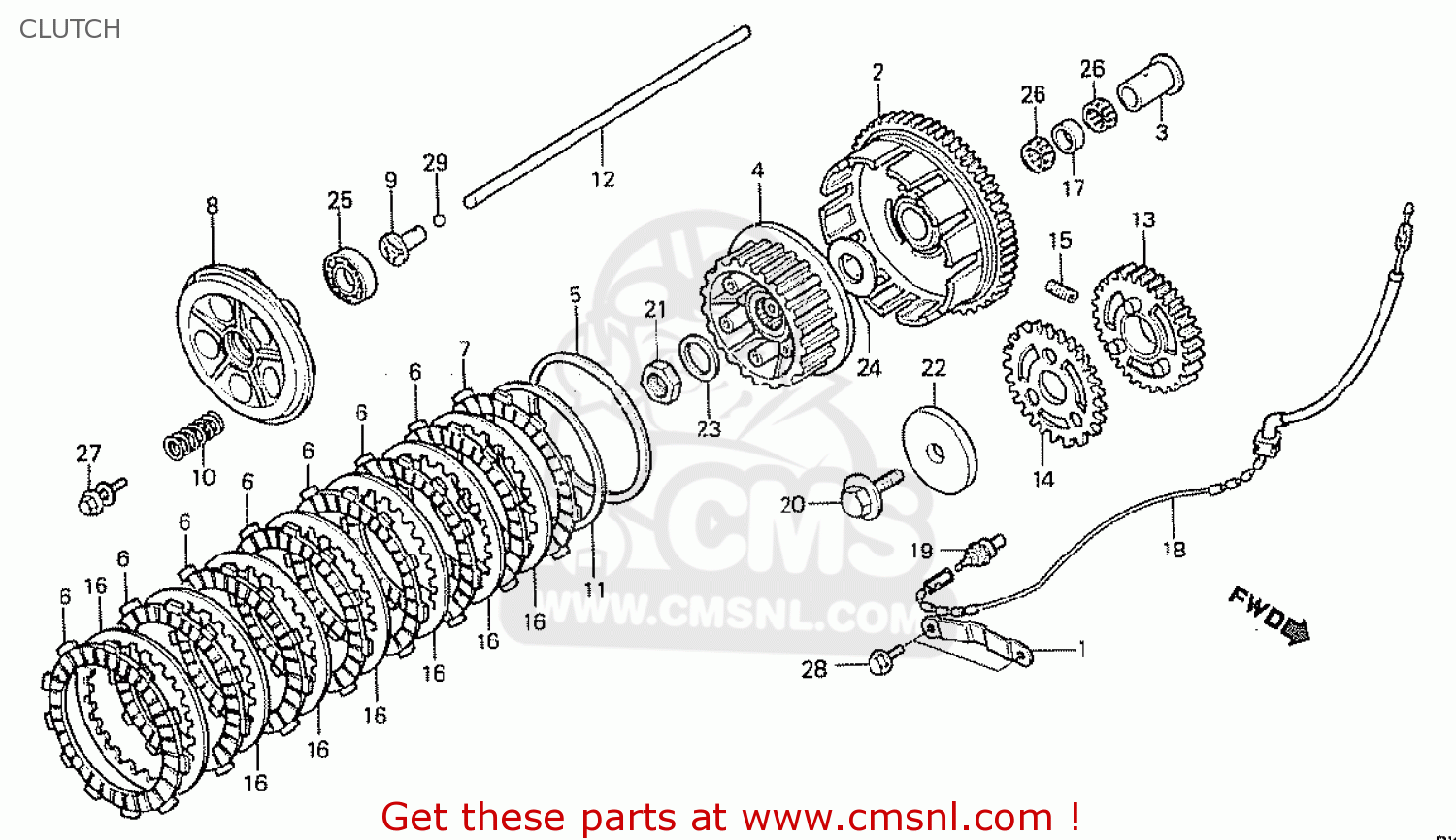

Clutch diagram NS400R 1985 (F) GERMANY

CLUTCH NS400R 1985 (F) GERMANY
CLUTCH NS400R 1985 (F) GERMANY
CLUTCH NS400R 1985 (F) GERMANY
prices are in EUR
ref
part #
description
quantity
1
15213KM4000
ref: 1
PLATE,IDLE SHAFT
15213KM4000
€ 4.50

2
22100KM9000
ref: 2
OUTER COMP.,CLUTC
22100KM9000
€ 355.50

3
22116KM9000
ref: 3
COLLAR,KICK START
€ 9.00

4
22120KM9000
ref: 4
CENTER,CLUTCH
€ 75.50

5
22125435000
ref: 5
SEAT,JUDDER SPG.
22125435000
€ 8.00

6
22201KL3670
ref: 6
DISK,CLCH.FRICT.
€ 16.50

7
22201302000
ref: 7
DISK,FRICTION (MCA)
22201302000
€ 16.50

8
22350KM4000
ref: 8
PLATE,CLCH PRESS
22350KM4000
€ 44.50

9
22352KG4000
ref: 9
PIECE CLUT LIFTER
22352KG4000
€ 19.50

10
22401KM9000
ref: 10
SPRING,CLUTCH
22401KM9000
€ 4.50

11
22402435000
ref: 11
SPRING,JUDDER
22402435000
€ 36.00

12
22851KM9000
ref: 12
ROD,CLCH LIFTER
22851KM9000
€ 15.00

13
23111KM9000
ref: 13
GEAR,PRIMARY DRIV
23111KM9000
€ 92.00

14
23112KM9000
ref: 14
GEAR,PRIMARY SUB
23112KM9000
€ 38.50

15
23113KM9003
ref: 15
SPRING,DAMPER
23113KM9003
€ 4.00

16
23311200000
ref: 16
PLATE A, CLUTCH
23311200000
€ 10.50

17
28238KM9000
ref: 17
COLLAR,28.8MM
€ 9.50

18
32110KM9000
ref: 18
SUB,LORD NEUT.
€ 5.50

19
35600KM9000
ref: 19
SWITCH ASSY.,NEUT
€ 20.50

20
90002KM4000
ref: 20
BOLT,FLANGE 10X32
90002KM4000
€ 3.50

21
90241KM9000
ref: 21
NUT,LOCK,20MM
90241KM9000
€ 8.50

22
90401KM9000
ref: 22
WASHER,10MM
€ 6.50

23
90432121000
ref: 23
WASHER,LOCK
90432121000
€ 3.00

24
90452KM4000
ref: 24
WASHER,THR 22MM
€ 1.00

25
91008KE8003
ref: 25
91008KE8003

26
91023KG4003
ref: 26
NEEDLE BRG
€ 13.00

26
91023KG4004
ref: 26
NEEDLE BRG
91023KG4004
€ 13.00

27
934940602008
ref: 27
BOLT,WASHER,6X20
934940602008
€ 1.50

28
959000601208
ref: 28
BOLT,FLANGE,6X12
€ 1.00

29
9621110000
ref: 29
BALL,STEEL.,10
9621110000
€ 0.50
