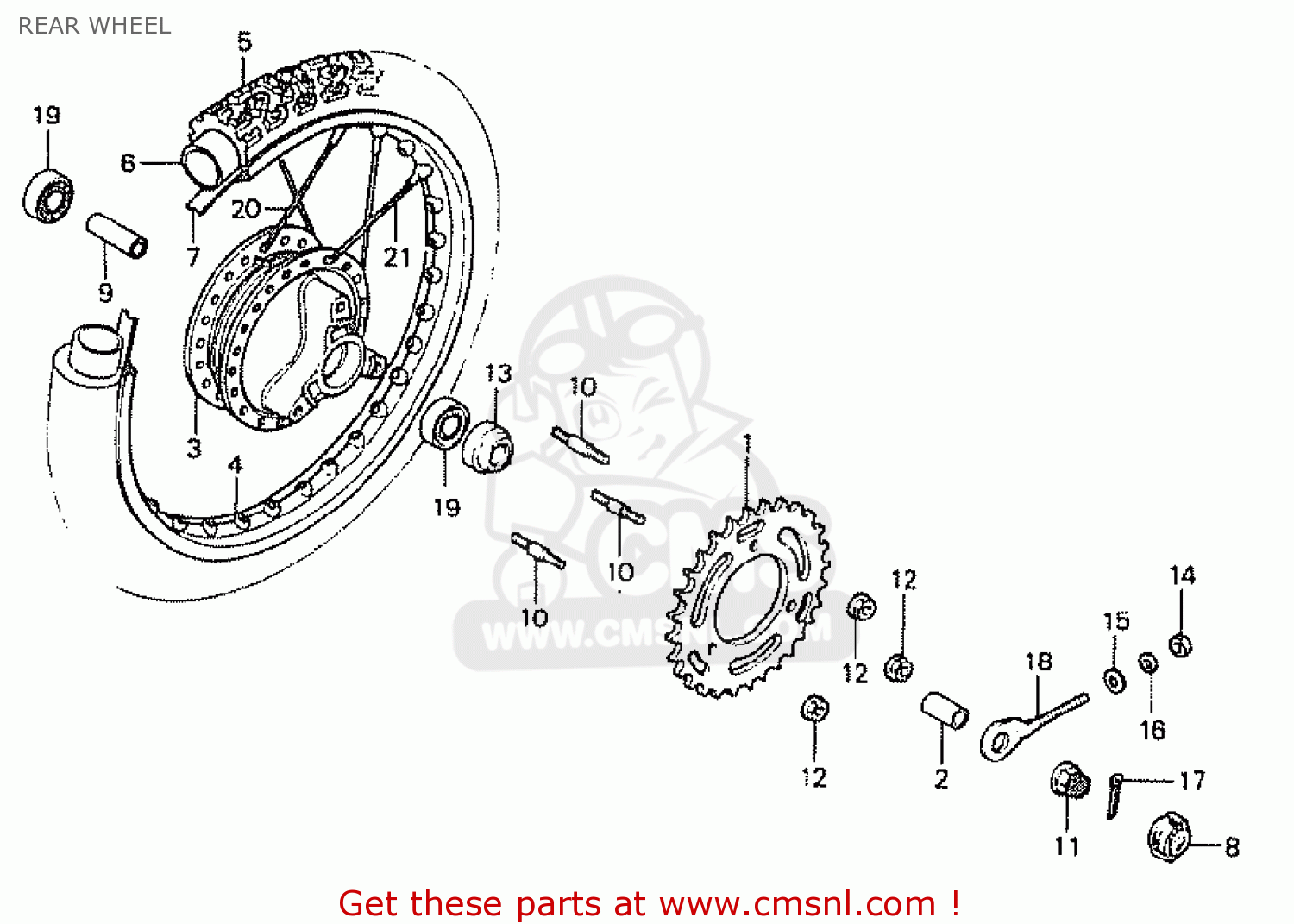

REAR WHEEL

ref

part #

description

quantity

1

41201166600
ref: 1

SPRKT,FINAL

€ 24.00

2

42311166000
ref: 2

COLLAR,RR.SIDE

€ 8.00

3

42601167000
ref: 3

HUB,RR.WHEEL

€ 126.50

4

42701167003
ref: 4

RIM,WHEEL(1.6X16) D.I.D

€ 99.50

5

42711KA8671
ref: 5

TIRE, RR. (3.00-16)

€ 166.00

5

42711KA8672
ref: 5

TIRE, RR. (3.00-16)

€ 37.50

6

42712167003
ref: 6

TUBE TIRE

€ 33.50

6

42712167005
ref: 6

TUBE TIRE

€ 33.50

7

42713116671
ref: 7

FLAP,REAR TUBE

€ 5.00

7

44713118003
ref: 7

FLAP X-16A

€ 5.00

9

44602098000
ref: 9

COLLAR,DISTANCE

€ 6.00

10

90125323000
ref: 10

BOLT,STUD,10X48

€ 5.50

11

90305169000
ref: 11

NUT,AXLE,12MM

€ 4.00

12

90308382670
ref: 12

NUT, FLANGE, 10MM

€ 5.00

13

91252030003
ref: 13

OIL SEAL 23X37X7

€ 5.00

13

91252030005
ref: 13

OIL SEAL 23X37X7

€ 5.00

14

94001060000S
ref: 14

NUT,HEX 6MM

€ 1.00

15

9410306000
ref: 15

WASHER,PLAIN,6MM

€ 1.00

16

9411106000
ref: 16

WASHER,SPRING,6MM

€ 1.00

17

9420130200
ref: 17

PIN,SPLIT, 3.0

€ 1.00

18

9501410010
ref: 18

ADJUSTER,SR.CHAIN

€ 4.00

19

961406301010
ref: 19

B/BRG RAD N/COM

€ 17.50

20

9728442132K0
ref: 20

SPOKE B.10X146

€ 2.00

21

9771442131K0
ref: 21

SPOKE B,10X145.5

€ 3.00
