REAR CUSHION

MT50S 1984 (E) ENGLAND

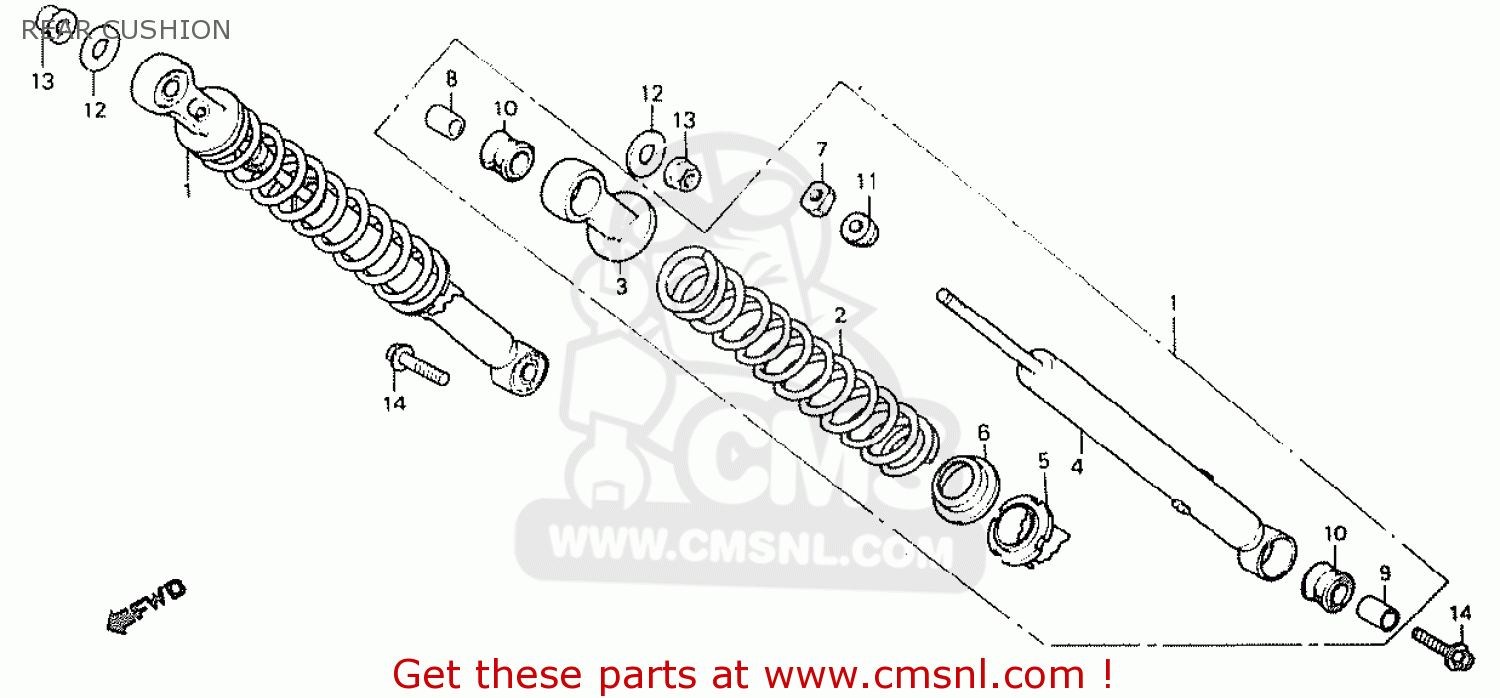

Rear cushion diagram MT50S 1984 (E) ENGLAND

prices are in EUR

ref

part #

description

quantity

52400167612
ref: 1

CUSHION ASSY.,RR.

€ 135.00

52401167611
ref: 2

SPG.,RR.CUSHION

€ 27.50

52403167003
ref: 3

METAL,RR.CUSHI.UP

€ 14.50

52410167612
ref: 4

DAMPER COMP.,RR.

€ 64.00

52422455000
ref: 5

ADJUSTER,SPRING

€ 17.00

52458317700
ref: 6

SEAT,SPRING UNDER

€ 5.50

52482175621
ref: 7

NUT,LOCK,9MM

€ 4.00

52486056000
ref: 8

COLLAR, CUSHION

€ 2.00

52488063000
ref: 9

COLLAR,UPPER

€ 3.50

52489399601
ref: 10

BUSH,UPPER RUBBER

€ 4.00

52517175621
ref: 11

RUBBER,STOPPER

€ 3.00

90551033000
ref: 12

WASHER,SPRKT SETT

€ 2.50

9405010000
ref: 13

9405010000

957001003500
ref: 14

BOLT,FLANGE,10X35

€ 1.50

REAR CUSHION

all assemblies
