CYLINDER - CYLINDER HEAD
MT50S 1984 (E) ENGLAND

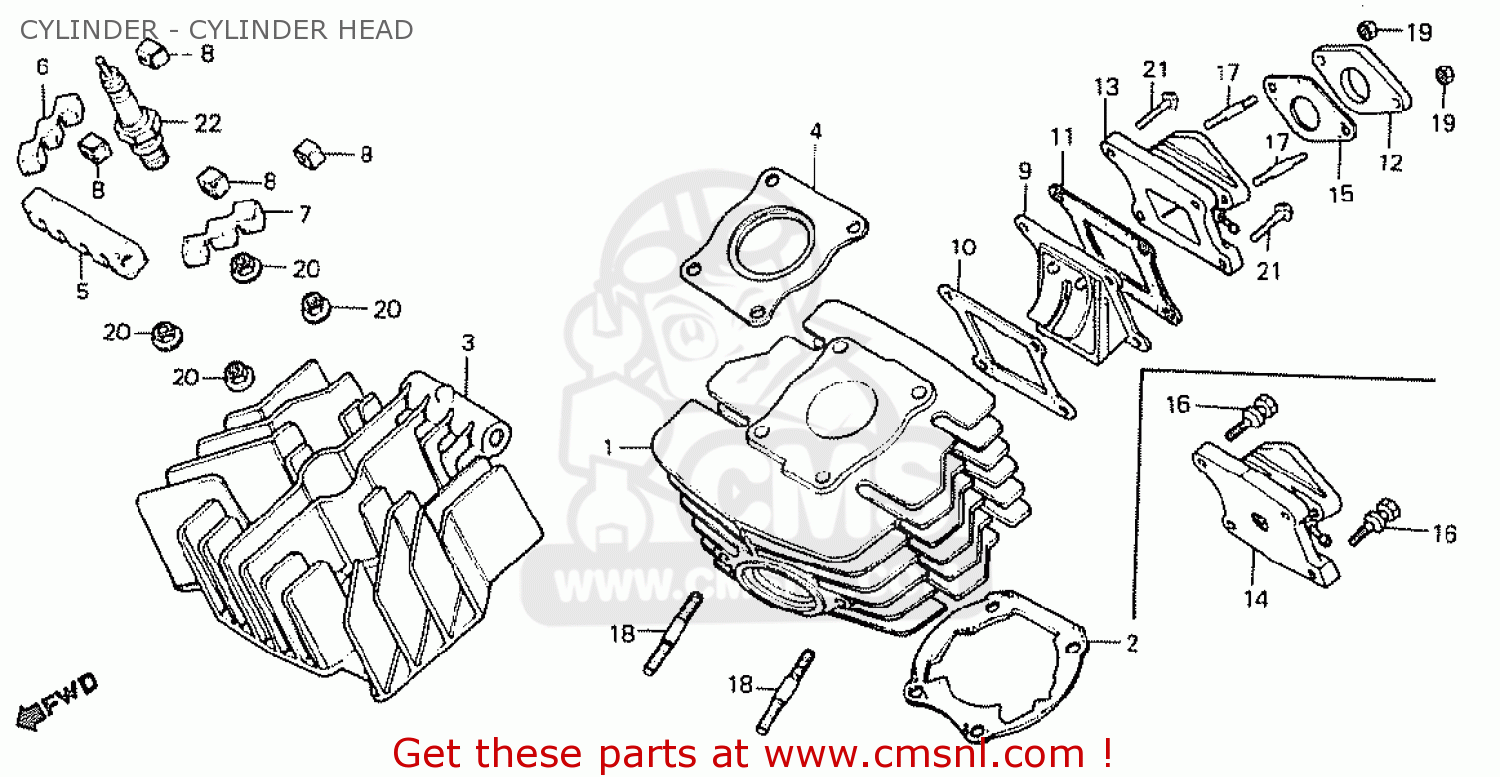

Cylinder - cylinder head diagram MT50S 1984 (E) ENGLAND
CYLINDER - CYLINDER HEAD MT50S 1984 (E) ENGLAND
×
prices are in EUR
ref
part #
description
quantity
1
12110166611
ref: 1
CYLINDER COMP.A
€ 298.00
2
12191166000
ref: 2
GASKET,CYLINDER (MCA)
€ 4.50
3
12200166610
ref: 3
HEAD,CYLINDER
€ 197.50
4
12251166000
ref: 4
GSKT,CYLINDERHEAD (NAS)
€ 2.50
5
12295166000
ref: 5
RUBBER F,INSERT
€ 5.00
6
12296166000
ref: 6
RUBBER R,INSERT
€ 3.50
8
12298166000
ref: 8
RUBBER S,INSERT
€ 2.00
9
14100166610
ref: 9
VALVE COMP.,REED
€ 50.00
10
14132166010
ref: 10
GASKET A,REED VLV (MCA)
€ 4.50
11
14133166010
ref: 11
GASKET,REED VALVE (MCA)
€ 4.50
12
16211166610
ref: 12
INSULATOR,CARB.
€ 7.50
13
17100166620
ref: 13
PIPE COMP.,IN.
€ 23.50
15
17119166610
ref: 15
GASKET,IN.PIPE (MCA)
€ 2.50
17
92700060281B
ref: 17
BOLT,STUD 6X28
€ 1.50
18
92700080351B
ref: 18
BOLT,STUD,8X35
€ 1.50
19
94001060000S
ref: 19
NUT,HEX 6MM
€ 1.00
20
9405008000
ref: 20
9405008000
21
960000602000
ref: 21
BOLT,FLANGE,6X20
€ 1.50
22
9807656716
ref: 22
PLUG(BR-6HS)
€ 7.50
22
9807656727
ref: 22
PLUG,SPARK(W20FSR
€ 5.50
22
9807657716
ref: 22
PLUG,SPARK
€ 7.50
22
9807657726
ref: 22
PLUG,SPARK
€ 6.00
22
9807658716
ref: 22
PLUG,SPARK
€ 7.50
22
9807658726
ref: 22
PLUG,SPARK
€ 6.00
