CRANKCASE - OIL PUMP - MT50S 1984 (E) ENGLAND

ref

part #

description

quantity

1

11101167000
ref: 1

CRANKCASE,R.

€ 247.00

2

11191167000
ref: 2

GASKET,CRANKCASE (MCA)

€ 11.50

3

11201167020
ref: 3

CRANK CASE L

€ 236.00

4

15100167611
ref: 4

PUMP ASSY.,OIL

€ 185.50

5

15151166000
ref: 5

RECEIVER,CABLE

€ 11.50

6

15525166000
ref: 6

TUBE,OIL PASS

€ 10.50

7

15531167315
ref: 7

PROTECTOR,OILPUMP

€ 8.50

8

16236168000
ref: 8

CLAMPER,TUBE

€ 7.00

9

90031166000
ref: 9

BOLT,CYLINDERSTUD

€ 6.00

10

90041166000
ref: 10

BOLT,DRAIN PLUG

€ 4.50

11

90407259000
ref: 11

PACKING, COCK

€ 3.50

12

9430108200
ref: 12

PIN,DOWEL,8X20

€ 3.00

13

91205166004
ref: 13

OIL SEAL,20X32X7

€ 12.00

14

91209612000
ref: 14

OIL SEAL, 12X22X7

€ 10.50

15

91301147023
ref: 15

O-RING,18.3X2.3

€ 2.50

16

91406166000
ref: 16

CLIP,WIRE

€ 3.50

17

9500202650
ref: 17

CLIP,B65,TUBE

€ 1.00

18

960000602000
ref: 18

BOLT,FLANGE,6X20

€ 1.50

19

960000603500
ref: 19

BOLT,FLANGE,6X35

€ 1.50

20

960000604000
ref: 20

BOLT,FLANGE,6X40

€ 1.50

21

960000604500
ref: 21

BOLT,FLANGE,6X45

€ 2.00

22

960000606500
ref: 22

BOLT,FLANGE,6X65

€ 2.50

23

960000611000
ref: 23

BOLT,FLANGE,6X110

€ 2.50

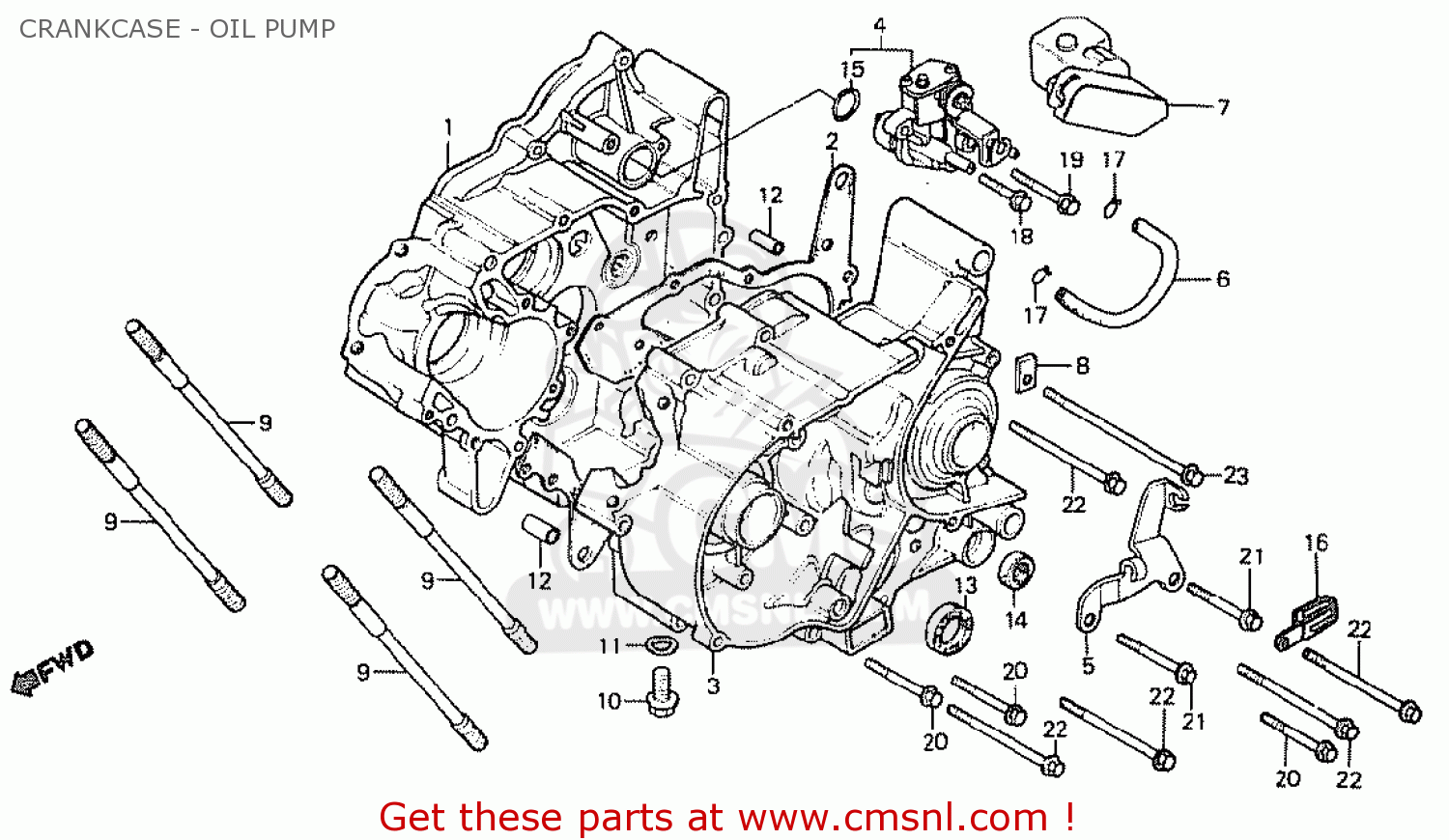

CRANKCASE - OIL PUMP

all assemblies
