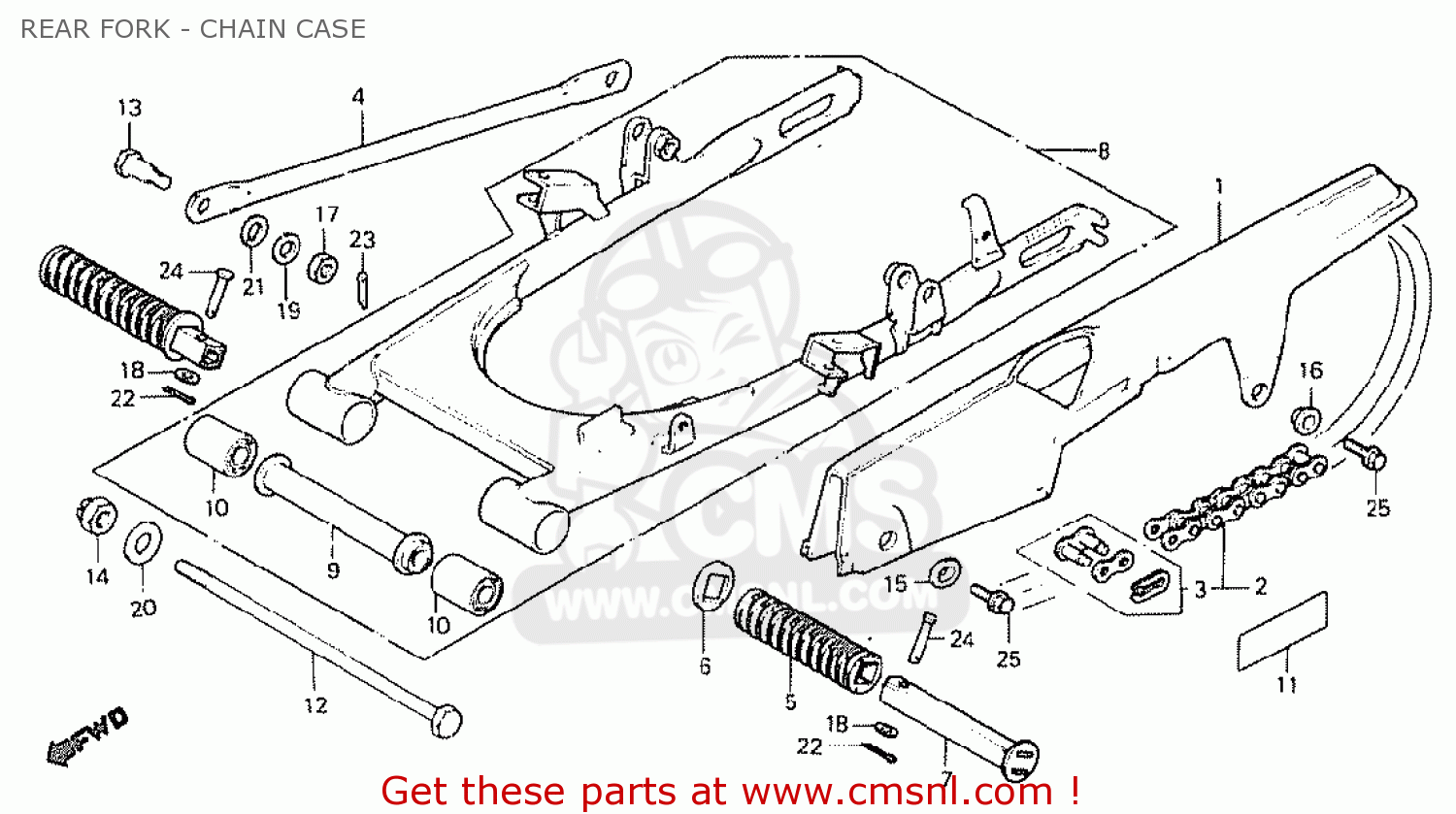

REAR FORK - CHAIN CASE - MT50S 1982 (C) NORWAY

ref

part #

description

quantity

1

40510166000
ref: 1

CASE,DRIVE CHAIN

€ 79.00

2

40530166611
ref: 2

CHAIN,DRIVE DID42

€ 26.50

2

40530166612
ref: 2

CHAIN,DRIVE

€ 27.00

3

40531150005
ref: 3

JOINT,DRIVE CHAIN

€ 3.50

3

40531153003
ref: 3

JOINT,DRIVE CHAIN

€ 3.50

4

43431166000
ref: 4

ARM,RR.BRK.STPR

€ 13.00

8

52110166000ZB
ref: 8

FORK,RR.*NH-24*

€ 176.50

8

52110166000ZE
ref: 8

FORK,RR.*R-23*

€ 229.50

9

52111166000
ref: 9

COLLAR,RR.FORK

€ 21.00

10

52147028300
ref: 10

BUSH,REAR FORK

€ 11.50

11

87505167610
ref: 11

MARK,TIRE CAUTION

€ 4.50

12

90121360010
ref: 12

BOLT,REARFORK

€ 47.50

13

90133331770
ref: 13

BOLT,BRAKE STOP

€ 4.00

14

90353045000
ref: 14

NUT,SELF LOCK

€ 4.00

15

90513323000
ref: 15

WASHER,6X9

€ 2.50

16

90563045000
ref: 16

BRACKET,WASHER

€ 5.00

17

94001080000S
ref: 17

94001080000S

19

9410108000
ref: 19

WASHER,PLAIN,8MM

€ 1.00

20

9410112000
ref: 20

WASHER,PLAIN,12MM

€ 1.00

21

9411110000
ref: 21

SPG-WASHER 10MM

€ 1.00

23

9420120150
ref: 23

PIN,COTTER 2.0X15

€ 1.00

25

957000601200
ref: 25

BOLT, FLANGE,6X12

€ 1.00
