LEFT CRANKCASE COVER - GENERATOR
MT50S 1982 (C) NORWAY

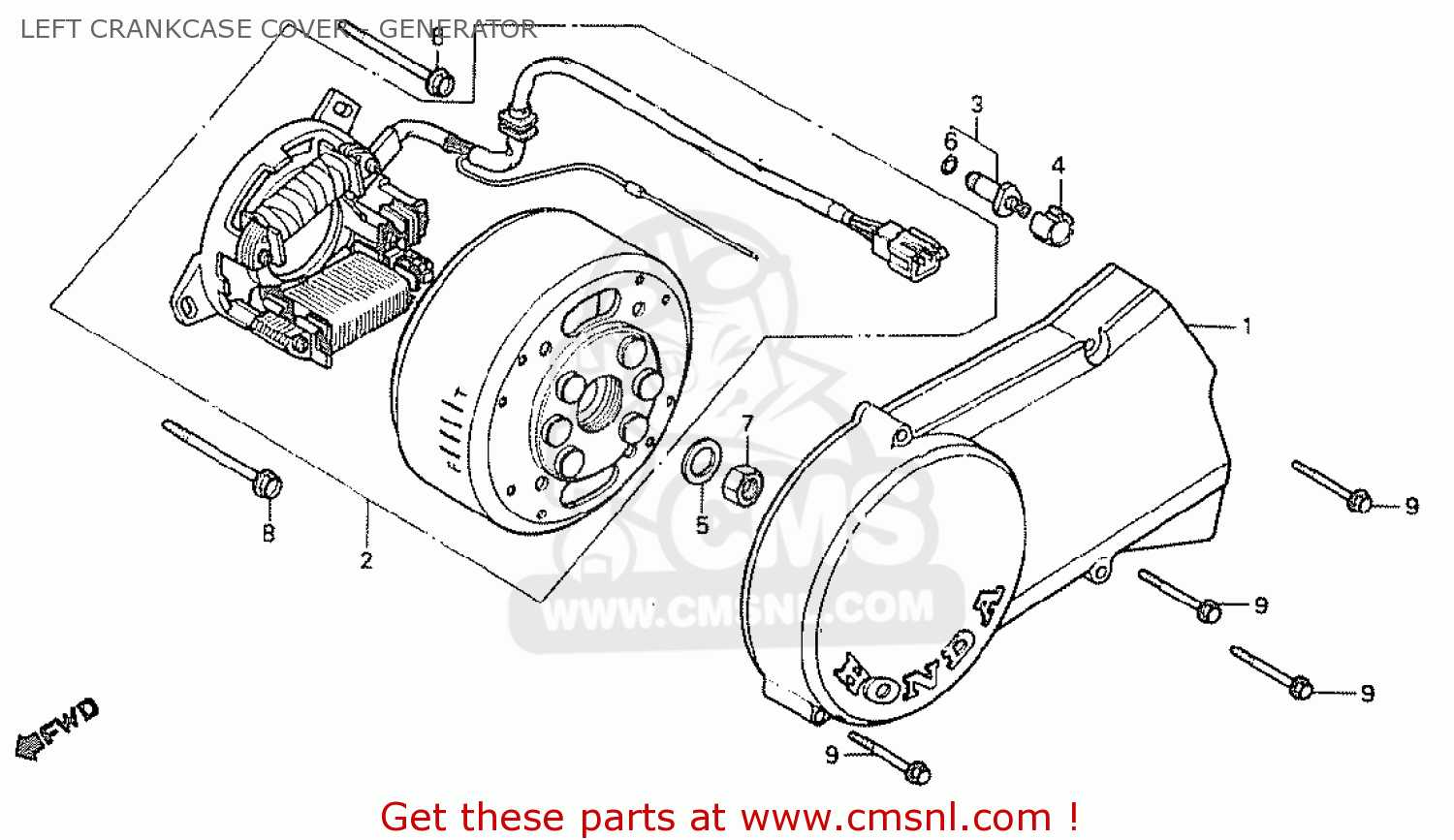

Left crankcase cover - generator diagram MT50S 1982 (C) NORWAY
LEFT CRANKCASE COVER - GENERATOR MT50S 1982 (C) NORWAY
×
prices are in EUR
ref
part #
description
quantity
1
11341166000
ref: 1
COVER,L.CRANKCASE
€ 65.50
2
31100166014
ref: 2
A.C.GEN.FLYWHEEL
€ 361.00
2
31100166018
ref: 2
A.C.GEN.FLYWHEEL
€ 408.50
3
35750001020
ref: 3
CONTACT,NEUTRAL
€ 5.00
4
35752166300
ref: 4
SPACER,NEUT SW
€ 5.50
5
90441166000
ref: 5
WASHER,PLAIN,12MM
€ 3.00
6
91312107000
ref: 6
O-RING 7X1.7
€ 3.00
7
94001122000S
ref: 7
NUT HEX 12MM
€ 1.00
8
957000605500
ref: 8
BOLT,FLANGE,6X55
€ 2.00
9
960000603500
ref: 9
BOLT,FLANGE,6X35
€ 1.50
