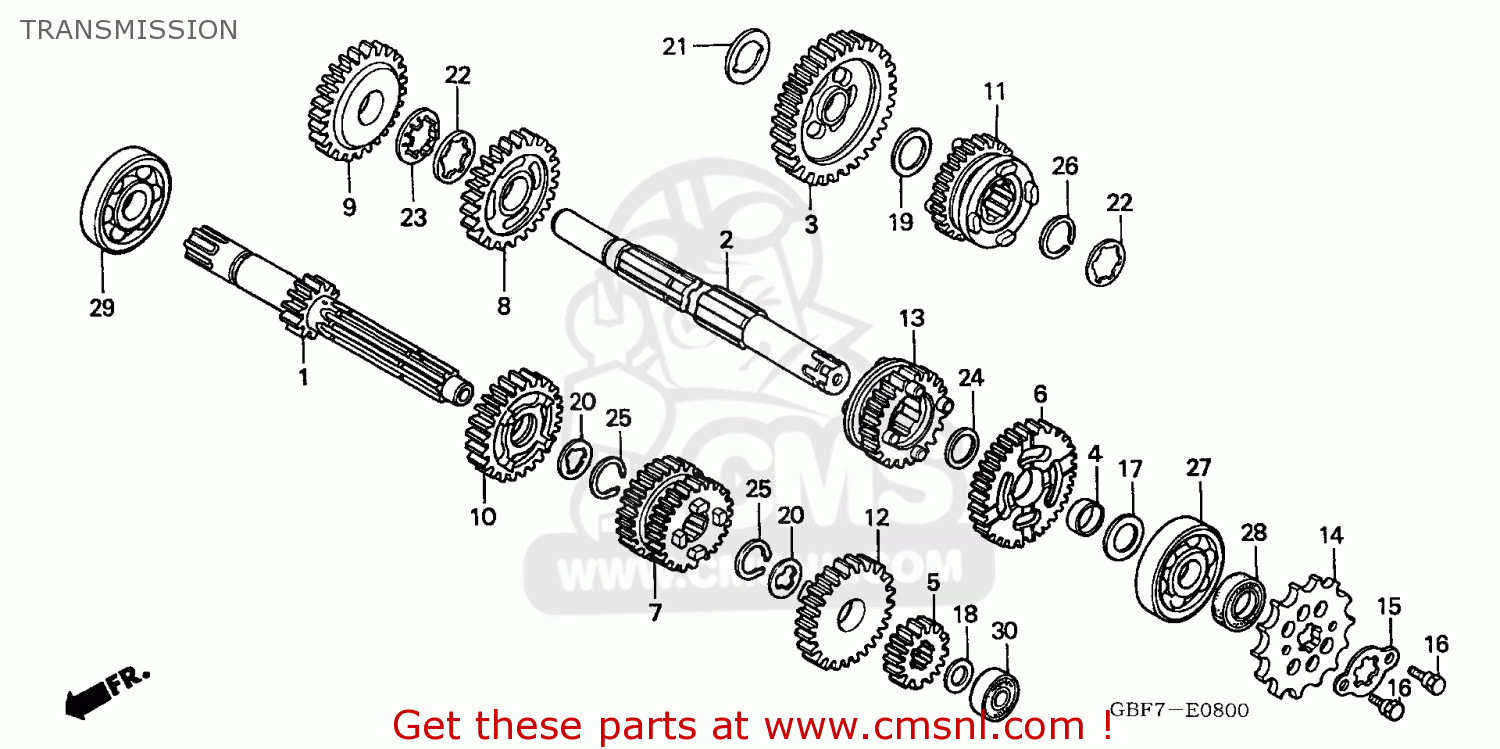

TRANSMISSION

ref

part #

description

quantity

1

23211GBF830
ref: 1

SHAFT,MAIN TRANSM

€ 101.50

2

23221GC4600
ref: 2

SHAFT,COUNTER TRA

€ 85.50

3

23420GBFB40
ref: 3

GEAR COMP,C-LOW

€ 70.00

4

23431166600
ref: 4

BUSH,17MM

€ 14.00

5

23441GC4730
ref: 5

GEAR.M2

€ 40.50

6

23451GBFB40
ref: 6

GEAR,C-2ND

€ 53.50

7

23461GBFB40
ref: 7

GEAR,M-3RD 4TH

€ 101.50

8

23471GBFB40
ref: 8

GEAR,C-3RD

€ 44.00

9

23481GC4600
ref: 9

GEAR,COUNTERSHAFT

€ 42.50

10

23491GBFB40
ref: 10

GEAR,M-5TH

€ 46.00

11

23501GBFB40
ref: 11

GEAR,C-5TH

€ 63.00

12

23511GBFB40
ref: 12

GEAR,M-6TH

€ 48.50

13

23515GBFB40
ref: 13

GEAR,C-6TH

€ 55.50

14

23800GC4600
ref: 14

SPROCKET,DRIVE (1

€ 20.00

15

23802GC4601
ref: 15

PLATE,DRIVE SPROC

€ 4.00

16

90084041000
ref: 16

BOLT, SPROCKET

€ 2.00

17

90446357000
ref: 17

WASHER,17.2MM

€ 7.50

18

90452166600
ref: 18

WASH,THRUST 12MM

€ 1.50

19

90452437000
ref: 19

WASHER,THR.16.5MM

€ 2.50

20

90461115000
ref: 20

WASHER,17MM

€ 2.50

21

90463166000
ref: 21

WASH,THRUST 15MM

€ 2.50

22

90464166000
ref: 22

WASH A,SPLINE

€ 2.50

23

90465166600
ref: 23

WASHER,LOCK 19MM

€ 2.50

24

90466166600
ref: 24

WASH,THRUST,17MM

€ 2.50

25

90601001000
ref: 25

CIRCLIP, 17M/M

€ 1.50

26

90602166010
ref: 26

CIRCRLIP,19MM

€ 2.50

27

91007GC4701
ref: 27

B/BRG RAD N/COM

€ 23.00

28

91201415013
ref: 28

OIL SEAL,17X28X7

€ 6.50

29

961206203000
ref: 29

B/BRG RAD N/COM

€ 18.50

30

961406001000
ref: 30

B/BRG RAD N/COM

€ 19.00
