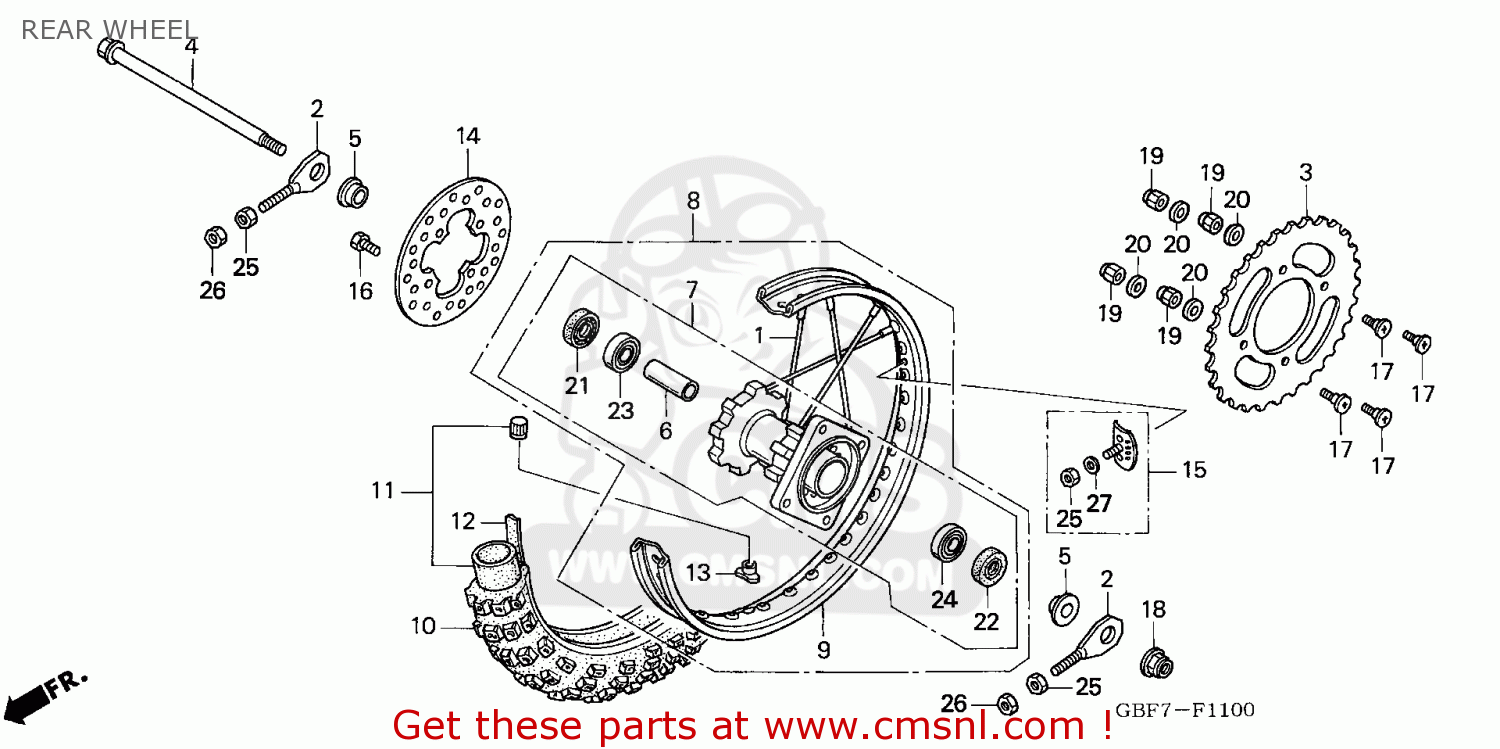

REAR WHEEL

ref

part #

description

quantity

1

06420GBF860
ref: 1

SPOKE SET,RR A

€ 5.50

2

40543GBF830
ref: 2

ADJUSTER,CHAIN

€ 9.00

3

41201GBFK10
ref: 3

SPROCKET,FINAL (5

€ 143.00

3

41201GBF860
ref: 3

SPROCKET,FINAL (5

€ 137.00

3

41201GBFK50
ref: 3

SPROCKET,FINAL (5

€ 106.00

4

42301GBFJ00
ref: 4

AXLE,RR WHEEL

€ 22.50

5

42311GBF830
ref: 5

COLLAR,RR WHEEL

€ 9.00

6

42620GBF830
ref: 6

COLLAR,RR AXLE DI

€ 7.00

7

42635GBF830
ref: 7

HUB SUB ASSY,RR

€ 277.00

8

42650GBF860
ref: 8

WHEEL SUB ASSY,RR

€ 650.50

9

42701GBF861
ref: 9

RIM,RR WHEEL

€ 276.50

10

42711GBF871
ref: 10

TIRE,RR(BS)

€ 328.00

11

42712GBF871
ref: 11

TUBE,TIRE(BS)

€ 50.00

12

44713118003
ref: 12

FLAP X-16A

€ 5.00

13

42714KA3710
ref: 13

CAP,VALVE

€ 10.00

14

43351GS2600
ref: 14

DISK,RR.BRAKE

€ 162.50

15

42715KA2680
ref: 15

STOPPER,BEAD,1.85

€ 43.50

16

90105KAE870
ref: 16

BOLT,DISK,6X17

€ 3.00

17

90125KA4000
ref: 17

SCREW,SOCKET CAP

€ 3.00

18

90305GE8003
ref: 18

NUT,U,14MM

€ 6.00

19

90309ML3791
ref: 19

NUT,U,8MM

€ 4.50

20

90465MC4000
ref: 20

WASHER,8MM

€ 4.00

21

90745GC4702
ref: 21

DUSTSEAL32X21X5.5

€ 4.00

22

90752GB4681
ref: 22

OIL SEAL 21X35X7

€ 5.50

23

91073GBF831
ref: 23

BRG,BALL RADIAL 6

€ 27.00

24

91074GBF831
ref: 24

BRG,BALL RADIAL 6

€ 26.00

25

94001080000S
ref: 25

94001080000S

26

94002080000S
ref: 26

NUT,HEX.,8MM

€ 1.00

27

9411108000
ref: 27

SPG-WASHER 8MM

€ 1.00
