REAR BRAKE CALIPER
CR85RB 2006 (6) AUSTRALIA / T19

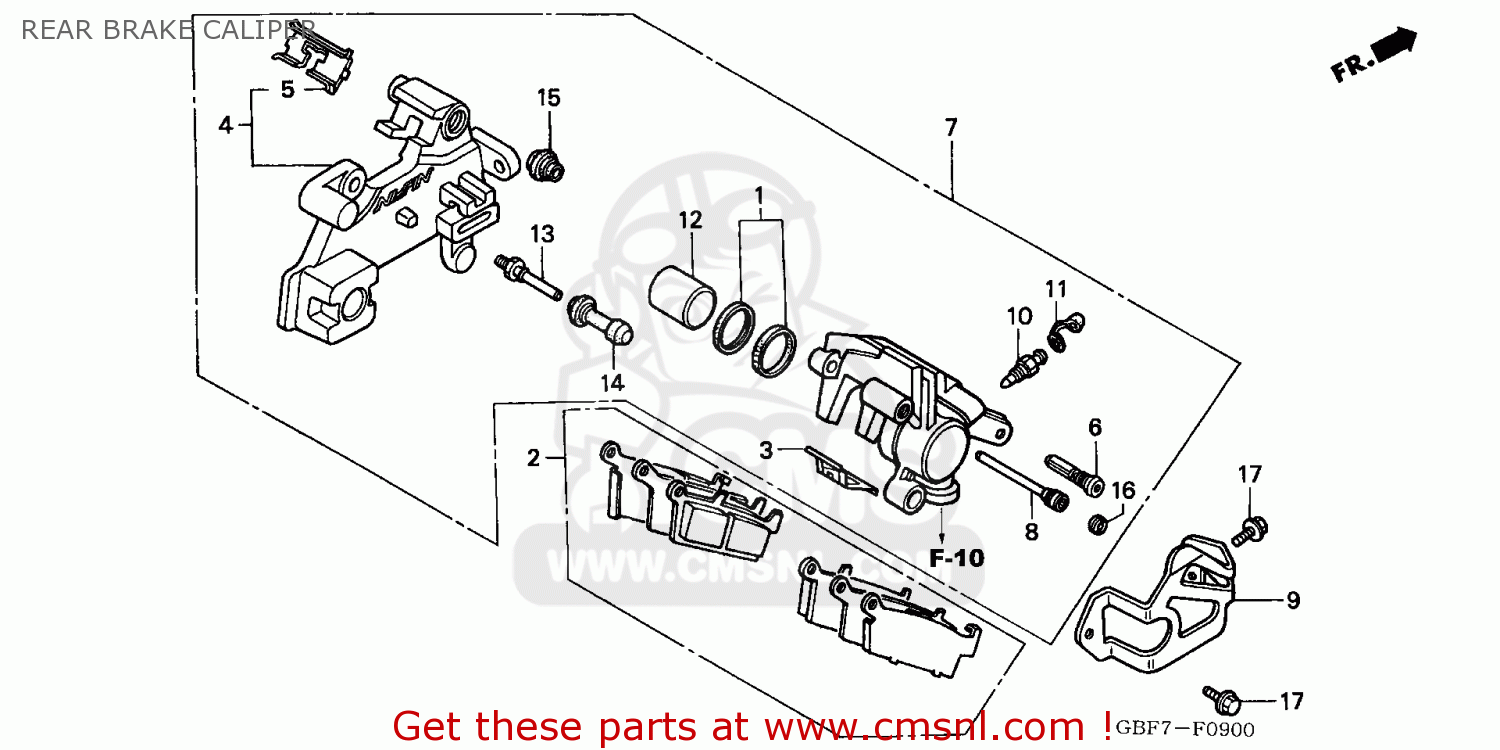

Rear brake caliper diagram CR85RB 2006 (6) AUSTRALIA / T19
REAR BRAKE CALIPER CR85RB 2006 (6) AUSTRALIA / T19
×
prices are in EUR
ref
part #
description
quantity
1
06431MA3405
ref: 1
SEAL SET,PISTON
€ 11.50
2
43105KZ1405
ref: 2
PAD SET,RR BRAKE (NAS)
€ 74.00
3
43108MY6671
ref: 3
SPRING,PAD
€ 7.00
4
43110GS2601
ref: 4
BRACKET COMP.,RR.
€ 149.50
5
43112GT4006
ref: 5
RETAINER
€ 5.00
6
43131KW3006
ref: 6
PIN,BOLT
€ 7.00
7
43150GS2305
ref: 7
CALIPER SUB ASSY,
€ 239.50
8
43215ML3911
ref: 8
PIN,HANGER
€ 8.50
9
43340KS6831
ref: 9
GUARD,RR.CALIPER
€ 49.50
10
43352568003
ref: 10
SCREW, BLEEDER
€ 9.00
11
43353461771
ref: 11
CAP,BLEEDER
€ 5.00
12
45107MN4016
ref: 12
PISTON COMP
€ 64.50
13
45131166016
ref: 13
PIN,BOLT
€ 4.00
14
45132166016
ref: 14
BUSH,PIN
€ 3.50
15
45133MA3006
ref: 15
BOOT B
€ 5.00
16
45203MG3016
ref: 16
PLUG,PIN
€ 4.50
17
960010601200
ref: 17
BOLT,FLANGE,6X12
€ 1.50
