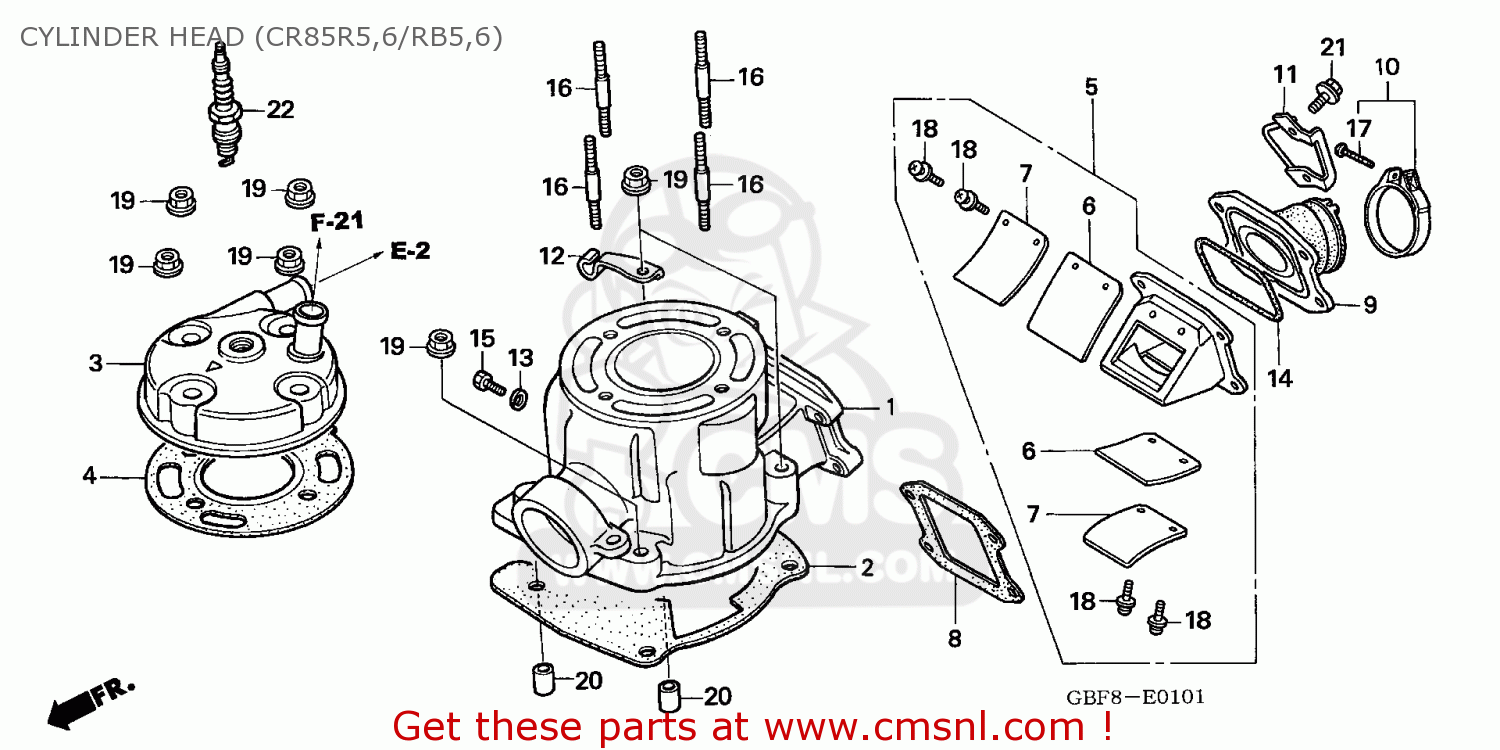

CYLINDER HEAD (CR85R5,6/RB5,6)

ref

part #

description

quantity

1

12110GBFB40
ref: 1

CYLINDER COMP,A

€ 607.50

2

12191GBFB40
ref: 2

GASKET,CYLINDER (NAS)

€ 4.50

3

12201GBFB40
ref: 3

HEAD,CYLINDER

€ 155.50

4

12251GBFB01
ref: 4

GASKET,CYLINDER H (NAS)

€ 20.00

5

14100GBFB41
ref: 5

REED VALVE ASSY

€ 139.00

6

14111GBFB41
ref: 6

REED VALVE ONLY

€ 51.50

7

14121GC4601
ref: 7

STPR.REED VALVE

€ 6.00

8

14132GBFB40
ref: 8

GASKET A,REED VAL (NAS)

€ 4.00

9

16220GC4600
ref: 9

INSULATOR,CARBURE

€ 34.00

10

16223GBF830
ref: 10

BAND,INSURATOR

€ 10.00

11

19510GBFB40
ref: 11

CLAMPER COMP,WATE

€ 8.50

12

22821GBF830
ref: 12

RECEIVER,CLUTCH C

€ 7.00

13

90543273000
ref: 13

PACKING, DRAIN

€ 1.50

14

91305GC4601
ref: 14

O RING,SPL

€ 4.50

15

92301060100A
ref: 15

BOLT,RECESSED,6X1

€ 1.00

16

92700080500E
ref: 16

BOLT,STUD 8X50

€ 3.00

17

93500040250G
ref: 17

SCREW,PAN,4X25

€ 1.00

18

938920300608
ref: 18

SCREW-WASHER3X6

€ 1.00

19

9405008000
ref: 19

9405008000

20

9430110160
ref: 20

9430110160

21

960010602000
ref: 21

BOLT FLANG 6X20

€ 1.50

22

9807960679
ref: 22

SPARK PLUG,BR10EG

€ 16.00
