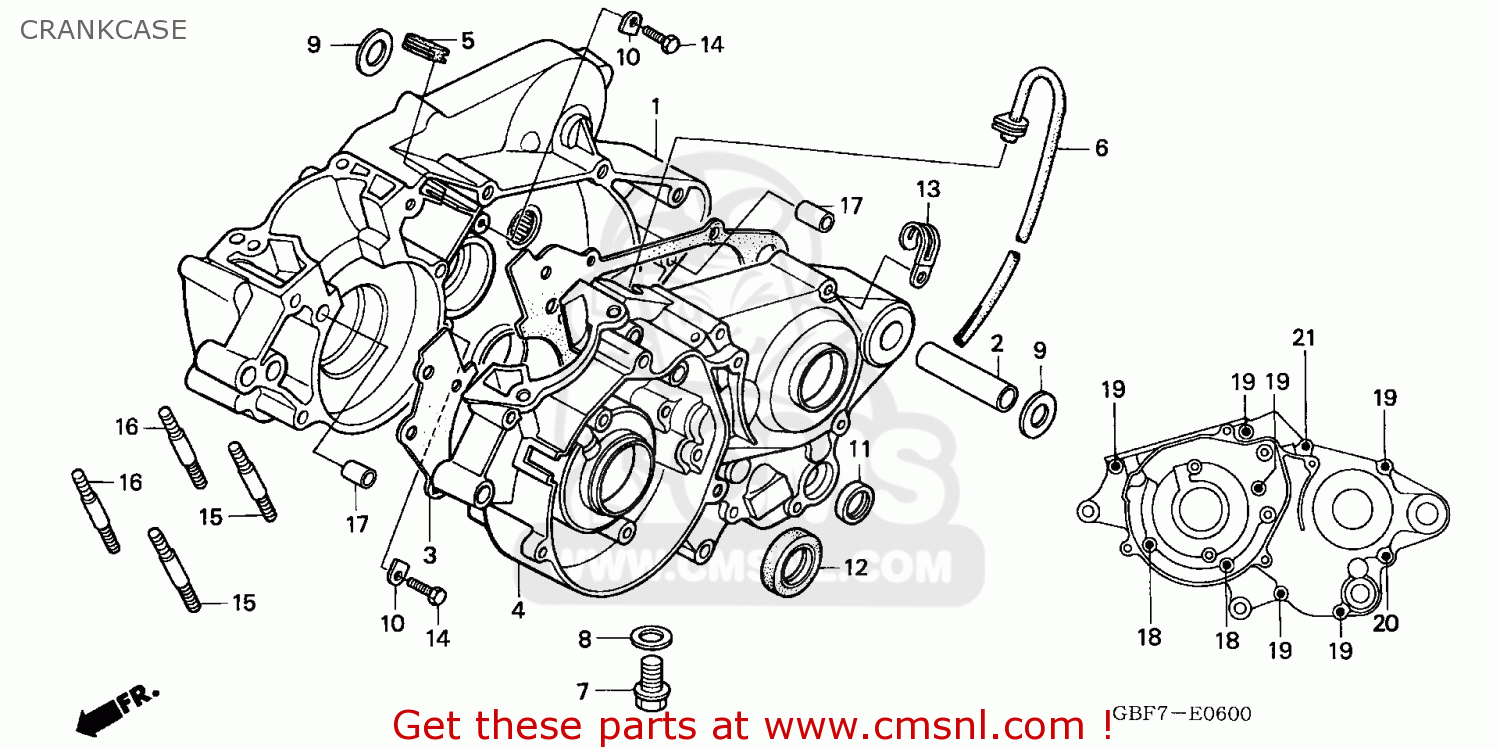

CRANKCASE

ref

part #

description

quantity

1

11100GBFB40
ref: 1

CRANK CASE COMP,R

€ 222.00

2

11104GC4000
ref: 2

COLLAR,17MM

€ 7.00

3

11191GBF830
ref: 3

GASKET,CRANK CASE (NAS)

€ 13.50

4

11200GBFB40
ref: 4

CRANK CASE COMP,L

€ 304.00

5

11206GC4700
ref: 5

GROMMET,BRTHR.

€ 2.50

6

11211GC4701
ref: 6

TUBE,BREATHER

€ 6.50

7

90015KA3711
ref: 7

BOLT,SPECIAL,12MM

€ 5.00

8

90407259000
ref: 8

PACKING, COCK

€ 3.50

9

90412GC4600
ref: 9

WASHER,14.2X30.5

€ 3.00

10

90441KA4700
ref: 10

PL,BEARING HOLD

€ 3.50

11

91202444023
ref: 11

OIL SEAL 14X24X6

€ 5.00

12

91205GC4711
ref: 12

OIL SEAL,20X32X7

€ 12.00

13

91413679000
ref: 13

CLIP,2X70

€ 3.00

14

92101060160A
ref: 14

BOLT,HEX.,6X16

€ 0.50

15

92700080500E
ref: 15

BOLT,STUD 8X50

€ 3.00

16

92700080550E
ref: 16

BOLT,STUD,8X55

€ 3.00

17

9430108200
ref: 17

PIN,DOWEL,8X20

€ 3.00

18

960010603500
ref: 18

BOLT,FLANGE,6X35

€ 1.50

19

960010605500
ref: 19

BOLT,FLANGE,6X55

€ 2.00

20

960010606000
ref: 20

BOLT,FLANGE,6X60

€ 2.00

21

960010607000
ref: 21

BOLT,FLANGE,6X70

€ 1.50
